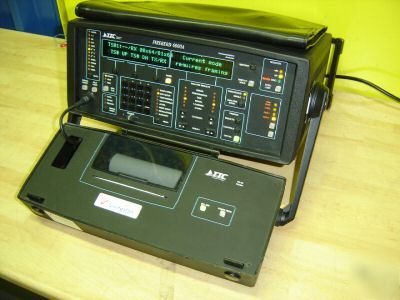

ACTERNA/TTC FIREBERD 600A Whit Thermal Printer, and N X 64k Interface This Acterna is selled whit 2.048M N x 64k interface, options 6005, 6010, and a thermal printer. This unit comes in very good conditions, as shown on the pictures. Please don't hesitate to contact me for more informations about this item. The FIREBERD 6000 provides superior test solutions for new technologies, such as frame relay and asynchronous transfer mode (ATM). * Detect hard-to-find bit error rate (BER) problems quickly, and interpret test results easily using customized printouts that show only the results that you specify * Reduce response time and extend the reach of your field technician with remote testing. DTM32 and Remote Test Manager (RTM) software options enable you to perform remote testing from your PC or UNIX workstation * Use your FIREBERD to test analog circuits. The TIMS-45 Lid enables you to perform VF and wideband Transmission Impairment Measurement Set (TIMS) tests on analog and digital transmission lines * Automate routine testing on your FIREBERD 6000 with Dynamic Script Generator Option and free LabVIEW drivers * In-Service Monitoring. Monitor live data at various access locations, from resistor-isolated DSX monitor points to a bridge on a four-wire access point, without disturbing revenue-generating traffic. Ideal for routine maintenance, the FIREBERD offers a variety of in-service measurements, including bipolar violations, timing and level analysis, frame errors, and CRC errors. * End-to-End Testing. Quickly isolate any problem to a specific direction by analyzing the performance of an entire digital link in both directions. Full-duplex end-to-end testing also serves as an excellent analysis of all circuits and equipment within your network. * Out-of-Service Testing. Perform precise analysis of your circuits and equipment by removing live traffic from the digital link. The FIREBERD offers a variety of bit error results and statistics for the most accurate measurement of circuit performance by any test instrument. The FIREBERD can generate an array of stress patterns, frame relay frames, and ATM test cells to ensure that your circuits and equipment are operating within the limits of applicable standards and to verify an acceptable quality of service for your circuit. * Loopback Testing. Enjoy the convenience of using a single FIREBERD to perform out-of-service testing. Loopback testing is ideal as a quick check of circuit performance or when isolating faulty equipment. The FIREBERD supports all standard T1, DDS, and data communications loopbacks. * Portable WAN analyzer with Automated and Remote Testing * Test ATM, frame relay, ISDN, T1, and more * Detect hard-to-find BER problems quickly Specifications - Modes of Operation: * Emulate DTE (for connection to DCE) * Emulate DCE (for connection to DTE) Specifications - General Timing: Synchronous: 50 b/s to 52 Mb/s Asynchronous: 50 b/s to 20 kb/s Recovered Clock: 50 b/s to 520 kb/s * Internal Frequency Synthesizer * Interface Module (or built-in RS-232 Interface) * LED illuminates when no generator clock signal is present Specifications - Frequency Synthesizer: Frequency Range: 50 Hz to 15 MHz * Five significant digits for frequencies that begin with 10 through 15 * Four significant digits for all other frequencies * User-Programmable, 3- to 24-bit repeating pattern * DDS-1 to DDS-6 (DDS-apecific patterns) * T1-1 to T1-6, T1 mW, and DALY (T1-specific patterns) * Tone (1004 Hz and 1020 Hz) * FOX message (in Baudot, BCDIC, ASCII, or EBCDIC) * Three user-programmable messages, each up to 2048 characters in length Asynchronous Character Format: Parity: Odd, even, or none Stop Bits: 1, 1.5, or 2 bits * Single error or fixed 10-3 bit error rate in generated data only Specifications - Receiver Timing: Synchronous: 50 b/s to 52 Mb/s Asynchronous: 50 b/s to 20 kb/s Recovered: 50 b/s to 520 kb/s * Clock recovery (optional and the unit is believed to not have this) * NO CLK indicator illuminates when receiver clock is not present * CLK INV indicator illuminates when the clock data phasing is the opposite of that required by interface standard * DATA INV indicator illuminates when the data phasing is the opposite of that required by interface standard Specifications - Data Error Analysis: * Receiver Inputs: MK illuminates when a Mark is received by the FIREBERD, the SP illuminates when a Space is received by the FIREBERD * DATA INV illuminates when received data is inverted from what is expected * SYNC LOST LED illuminates when a synchronization loss occurs * 104, 105, 106, 107, 108, 109, or 1010 bits * Time Test Intervals: One second to 24 hours, one-second resolution Specifications - Block Length: * 102 to 106 bits, one-bit resolution Specifications - Signal Analysis: Frequency Range: 50 Hz to 15 MHz Less than 1,000 Hz: 0.001 Hz 1,000 Hz to 9,999.99 Hz: 0.01 Hz 10,000.0 Hz to 99,999.0 Hz: 0.1 Hz Greater than 100,000 Hz: 1 Hz Specifications - Remote Control Capability: Remote Control Access: * RS-232 Printer/Remote Control Interface * Optional IEEE-488 Remote Control Interface * Front-panel switch settings Specifications - Internal RS-232 Data Interface: * Two 25-pin D subminiature female connectors * One connector for DCE emulation labeled TO DCE * One connector for DCE emulation labeled TO DTE Signal Format: Bipolar Unbalanced Data Bit Rates: 50 to 20 kb/s per EIA RS-232 and CCITT V.28 Specifications - Non-Volatile Memory: * Current front-panel switch settings, keypad entries, auxiliary functions * Three user-defined messages * Time and data of last power down * Results accumulated before power down Memory Back-Up Battery Life: Average of greater than seven years Display Type: Vacuum Fluorescent Display Display Size: 80 characters - 40 characters x 2 lines Character Font: 5 x 7 dot matrix and cursor Specifications - Power Requirements: Voltage: Two user-selectable ranges, 90 to 135 VAC, and 195 to 250 VAC Power: 110 volt amperes maximum Environmental Specifications: Operating Temperature Range: 0°C (+32°F) to +50°C (124°C) Storage Temperature Range: -30°C (-22°F) to +75°C (167°F) (Ttc/acterna fireberd 6000A w/ 6005 and 6010 options is the responsibility of Sadie Hartman) |
s.hartman@cedar--rapids.com (Sadie Hartman) for more information.
