3/4 hp variable motor speed control package 56C 110V


3/4 hp variable motor speed control package 56C 110V
We Have Thousands of products available.
o Electronic and mechanic motor protection devices
o Medium voltage soft starters
o AC and DC variable speed drive packages
Transformers Ventilation equipment Phase converters
o Phase converters convert single phase to three phase Multiple motor loads in excess
o 1 and 2 bearing generators to 2000kw o PTO drive generator sets 10 to 160kw
o High-speed gas air-cooled sets
o AC & DC metering (volts, amps, hour, frequency, pf, kw); Analogue and digital
o Safety switch engine safety and annunciator components
Power Factor Correction Technology

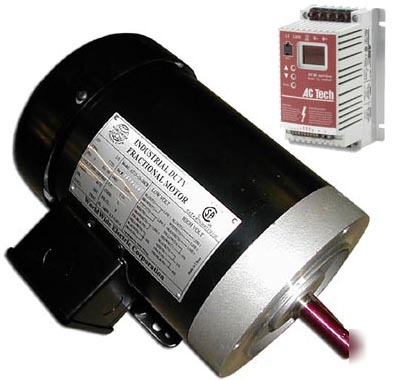

3/4 HP Variable Motor Speed Control Package 56C
American Express, Money Order, Cashier's cheque
Motor Specs: 3/4 HP, 208/230-460V, 1725 RPM, 3 Phase, 56C Frame, Cont. Duty, TEFC, C-FACE
New motor and New controller, Totally enclosed, Fan cooled 56C Frame 5/8" shaft
This package includes a Variable Speed Motor Control and the approriate motor to provide full speed control from 0 to 4 times the rated motor rpm. ie. 1725 rpm motor will run from 0 - 6900rpm. The variable speed control is brand new USA made unit. It accepts a 110 vac single phase input. the motor is a new 208~230/460 vac electric motor. This package only requires standard 110 vac single phase power to run. Both speed control and motor are offered with 1 year warranty. They are perfect for use with lathes, saws, grinders, sanders or whatever motorized equipment that you want to control the speed of and where 3 Phase power is not available. They provide forward, reverse, variable speed, and motor overload protection. They can maintain constant torque throughout the rpm range. Acceleration and deceleration times can be programmed into them. They can also provide braking as well. The speed can be controlled by the buttons on the face of the drive, with a potentiometer or you can have up to 3 preset speeds programmed in so that a press of a button will bring you to the speed you want. There are many other options available with these, connection to other devices such as PLC.
* To speak to a Friesen Electric specialist please call us
* If mailing certified check or money order the address is
Please included information detailing the purchase
* In the event that concealed damages are discovered after receipt of goods, carrier should be notified within 48 hours of goods damaged in order that proper liability may be established and appropriate claim filed.
* We are a reputable company in business for more than 50 years
(3/4 hp variable motor speed control package 56C 110V is the responsibility of Wade Levy)
Contact: wade-levy@cedar--rapids.com (Wade Levy) (actual email hidden)
Contact wade-levy@cedar--rapids.com (Wade Levy) for more information.
