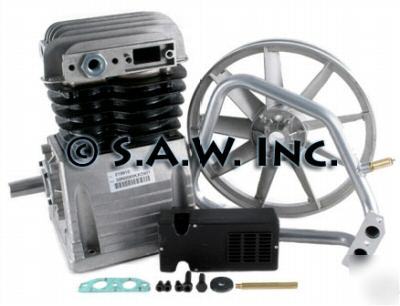

This pump is an aluminum housing pump with a cast-iron cylinder and roller bearings on both ends of the crankshaft. it comes with a 13 ¾ " tapered shaft flywheel and is set up to be used with a A-series ½ V-Belt belt as and has a 6 ¾ inch by 7 ½ square bolt pattern from center to center of all four mounting pads as shown in the pump picture. This pump is being used as the main replacement pump for DeVilbiss, Porter Cable, Sears Craftsman and DeWalt for their 5 to 7.5 HP air compressors and is rated from 12 to 18 cfm @ 100 psi, with pump rpm ratings set between Min 700 rpm’s to Max 1400 rpm's. For addition information please contact our office Monday thru Friday from 9am to 4pm Central standard time at (***)-673-5707. (D27044 pump for devilbiss porter cable dewalt and sears is the responsibility of Jean Gonzales) |
jgonzales@cedar--rapids.com (Jean Gonzales)
for more information.
