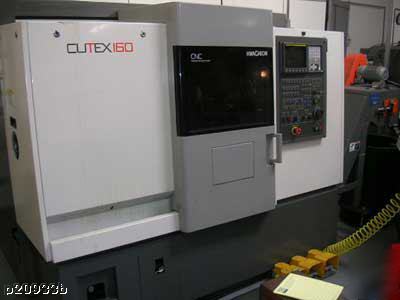

The Hwacheon CUTEX 160 CNC Lathe was developed to meet today's demand for superior turning center performance. Its distinctive design allows the CUTEX 160 to have the largest work capacity and spindle horsepower in its class. To insure that the base machine has the best possible foundation, the bed material is high quality, meehanite process cast iron, which has superior shock absorbing characteristics to withstand the forces of heavy-duty machining. The precision ground spindle is supported by a rigid headstock with grease-sealed, double-row cylindrical bearings, and angular-contact bearings at the front and double-row cylindrical bearings at the rear, thus keeping heat generation to a minimum. Spindle power is provided by a brushless, variable-speed AC motor, which is both energy efficient and maintenance free. A versatile drum-turret, servo-indexed, hydraulically clamped, permitting heavy-duty cutting. The extremely quick indexing speed and bi-directional tool selection, by the shortest path, minimizes non-cutting time. Including fast rapid traverse rates of both axes, the CUTEX 160 is one of the most productive turning centers on the market today. The CUTEX 160 features Fanuc 0ITB control, 6" power chuck, 12-station turret, and programmable tailstock. It has 1.7" bar work capacity, 21" of swing, 11.8" maximum turning diameter by 11.8" maximum turning length. Spindle speeds are 30-6000 rpm. Traverse rate is 1427 ipm. This machines includes extras, such as a collet nose and chip conveyor. Please refer to the pictures to see exactly what is included. * 45 degree Slant Bed Design * Chip and Coolant Splash Guarding separate from bed casting * 12-station Turret with Servo Index / Non Lift Curvic Coupling * ID/OD Tooling in any position on turret * Hydraulic Tailstock with Programmable Quill * Foot Switch for Hydraulic Chuck * 6" Diameter Hydraulic Power Chuck * SPINDLE SPEED: 30-6000 RPM * SPINDLE HORSEPOWER: 10/15 AC * INDEX TIME: 0.15 SECOND PER STATION * TURNING FACING TOOL SIZE: 1"X1" * BORING BAR MAX DIA: 1.25" * RAPID TRAVERSE: 1417 IPM * FLOOR SPACE: 65.5"X75.5" *FEATURES ARE SUBJECT T VERIFICATION PRIOR TO PURCHASE. This item has been inspected by a trained technician. Our inspection covers the basic operation of the item. As with any piece of equipment, new or used, this item will require additional inspection after it arrives due to the vibration during transit. We recommend you hire a professional service person to wire the machine, test it and perform any necessary service adjustments before putting it in to production. Please refer to the pictures for this item's cosmetic condition. This item is sold as pictured. INSPECTION NOTES- Machine is in like-new condition. 420 cutting time. 1175 hours on time. Items over 3000 lbs. less than 12000 lbs. will be sent via open-bed freight. These items exceed our forklift's capacity. These items cannot be palletized, put on a skid or crated through our company. Machinery movers will contracted to remove the item from our showroom and load it on to an open-bed freight truck. You will be charged a minimum rigging fee of $200. We may charge more in the case of items located outside our showroom. DIMENSIONS: 66x76x78H in. appr. RIGGING: $400 [Off-site location] Call us Monday through Friday 9am-5pm PST (***)-718-6734 Our address is 20933 Plummer Street Chatsworth, CA 91311 Live Online Support is also available NEED FINANCING? GET APPROVED INSTANTLY ONLINE! Jason Adler is our dedicated Finance Manager. Speak to him directly to find the program that best fits your business. Jason Adler (***) 433-9446 Kyle_Jacobson@cedar--rapids.com (Hwacheon cutex 160 cnc turning center lathe machine is the responsibility of Kyle Jacobson) |
Kyle_Jacobson@cedar--rapids.com (Kyle Jacobson) for more information.
