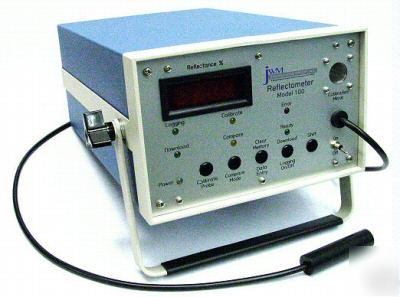

JWM Spectral Reflectometer Model 100. Developed to measure the Spectral Reflectance of objects such as plastics, metals, paints and coatings, thin films and optical filters to name a few. This instrument is microprocessor controlled and allows date and time stamped measurements to be saved using on-board memory and retrieved by the user's personal computer for detailed analysis and manipulation. The Model 100 has an built-in very high reflectance broadband (99.5%) mirror and calibration is as simple as pushing a single button. The "Compare" capability allows the user to select a reference sample, calibrate against that sample, and then measure and record test samples for uniformity. A USB serial port along with the necessary Windows software is included to allow full control of the Model 100 by an external PC computer. * 550nm Photopic Response - same as the human eye (other wavelenghts available upon request) * Two (2) Measurement Modes - Standard Spectral Reflectance and Zero based Reference Compare * Standard measurement range from 0-100% ± 0.5% accuracy * Compare Mode measurement range from -99.0% to 0 to +99.0%, accuracy ± 1% * Memory for logging data measurements in both standard and compare modes * Real Time Clock for date and time stamping of measured data * On-board microprocessor to control all operations and functions * USB serial port for communications with and downloading data from the Model 100 * AC powered or internal Battery power for remote field operations * Size - 5 x 8 x 13 inches (HxWxD), less than 12 Pounds in weight * Test probe is soft Delrin® plastic, will not scratch sensitive surfaces * Built-in carrying handle for portable operation * Full 2 Year limited warranty This is a NEW item and delivery time for this item is 6 weeks or less We can not accept personal checks. Sorry NO CODs. Calif residents must pay 8.25% sales tax. Unless we have a copy of your resale permit. Sorry, we do not work 24hrs a day 7 days a week please email questions during the work week. We will try to answer them in a timley maner. Thanks (New spectral reflectometer model 100 ( ) free ship us 48 is the responsibility of Eric Myers) |
E-Myers@cedar--rapids.com (Eric Myers)
for more information.
