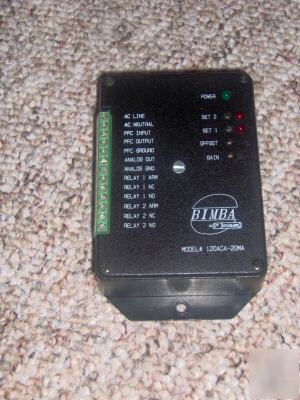

* EACH CONTROLLER OFFERS BOTH DUAL SET POINT AND SCALED ANALOG OUTPUT FUNTIONS. * INPUT POWER...................................................100 to 135 VAC (115 VAC INPUT) * POWER REQUIREMENT....................................5 VA max. * TRANSDUCER EXCITATION VOLTAGE............10 VDC * ELECTRICAL CONNECTIONS............................13 POSITION EURO SYTLE TERMINAL BLOCK * CONTROL LIMIT SET POINT RANGE...............2 INDEPENDENT ADJUSTMENTS SETTABLE FROM 0 to 100% OF CYLINDER STROKE * OUTPUT CONTACT RATINGS..........................5 A, 250 VAC, 0.8 POWER FACTOR * OUTPUT CONTACT CONFIGURATION............2 INDEPENDENT FORM C (SPDT) RELAYS, EACH RELAY HAS A CORRESPONDING CONTROL LIMIT SET POINT ADJUSTMENT * RESPONSE TIME (EXCLUDING BOUNCE)......OPERATE TIME.....8mS TYP/12 mS MAX. * RELEASE TIME.....4 mS TYP/6 mS MAX. * MECHANICAL LIFE.............................................20,000,000 OPERATIONS MINIMUM * OUTPUT LOAD SPECIFICATIONS....................0 to 10 VDC @ 10 mA MAX. * ZERO OFFSET ADJUSTMENT RANGE............+/-5V (10 VDC OUTPUT) * GAIN ADJUSTMENT RANGE.............................FROM 0.5 to 2.0 TIMES INPUT SIGNAL * DMENSIONS.......................................................H- 1.31", W- 5.50", D- 3.25" (Bimba- pfc electronic controller, $210.00 value, is the responsibility of Cheryl Kerr) |
