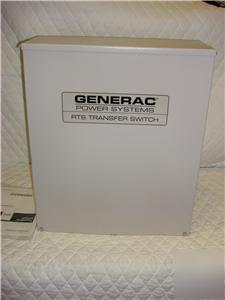

MERCEDES BENZ C230K EATON M62 M111 SUPERCHARGER 2-4L GENERAC GUARDIAN RTS AUTOMATIC TRANSFER SWITCH - 100 AMP 120/208 3 PHASE NEMA For sale is a GENERAC GUARDIAN RTS ATS 100 AMP 120/208. Generac RTS automatic transfer switches are designed to operate with the Generac R-Series control used on air cooled and liquid-cooled gaseous fueled generators from 7 kW through 60 kW. The RTS transfer switch will operate only with the Generac R-Series controller. The open transition switches are available in voltage configurations for 120/240 1ø, 120/208 3ø and 120/240 3ø at 100, 200 and 400 amp ratings and 277/480 3ø at the 100 and 200 amp rating. The standard switches are UL and CUL Listed and service entrance rated switches ar UL Listed only, all suitable for use with optional standby systems (NEC 702). All RTS transfer switches are housed in a NEMA 3R enclosure, with electrostatically applied and baked powder paint. The Heavy Duty Generac Contactor is a UL recognized device, designed for years of service. The control connection between the RTS and the Generator Control panel is (4) # 14 wires. The R-Series control in the generator handles all the timing, sensing and exercising functions. The Generac Service Entrance Rated Transfer Switches are available in 100, 200 and 400 amp ratings in 120/240 volt single phase only. The switches are UL 1008 listed with 100, 200 or 400 amp UL rated Circuit Breakers on both the Utility and Generator side of the transfer switch contactor for full source protection. The enclosure is rated for outdoor installation and is fully protected from the elements. 100 – 400 Amp RTS NEMA 3R with Service Disconnect 100 and 200 amp single phase transfer switch contactors are rated at 250 VAC. All other contactors are rated at 600 VAC. FUNCTIONS: RTS 100-400 Amp Transfer Switch (RTS-N-100G3) All Timing and sensing functions originate in the R-Series controller Utility voltage drop-out .................................................<60% Timer to generator start ........................................15 seconds Engine warm up delay ...........................................10 seconds Standby voltage sensor ....................................................90% Utility voltage pickup ......................................................>80% Re-transfer time delay .............................................15 seconds Engine cool-down timer ..........................................60 seconds Exerciser ............................................. 15 minutes every 7 days The transfer switch can be operated manually without power applied. I try my best to accurately represent the condition and quality of the products that we sell through the description that we write and especially with the pictures we post. We hand inspect every item prior to listing to ensure the accuracy of description. If a product is ever misrepresented and you wish to return it just email me and let me know. I can be emailed at k-sanford@cedar--rapids.com or called at (***)-573-2945. Certain images and/or photos used in this template are the copyrighted property of JupiterImages and are being used with permission under license. (Generac guardian rts-n-100G3 100AMP 120/208 rts ats 3PH is the responsibility of Kellie Sanford) |
