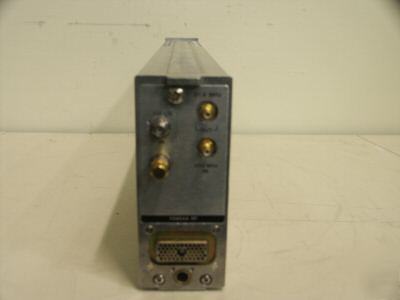

HP/Agilent 70904A 100Hz to 2.9GHz RF Spectrum Analyzer Module for HP 70000 Series Analyzer. * 100 Hz to 2.9 GHz broadband input conversion * Input attenuator varies from 0 to 70 dB in 10 dB steps * Probe connection on the front panel The Agilent 70904A RF section provides the 100 Hz to 2.9 GHz broadband input conversion for the Agilent 71100C spectrum analyzer and Agilent 71401C lightwave signal analyzer. The 70904A RF section contains an input attenuator and a mixer. The RF mixer converts the incoming RF signals to the intermediate frequency (IF) for further processing. The broadband, low noise mixer offers the performance needed to make high dynamic range measurements. The input attenuator can be automatically coupled either to the reference level for mixer protection or to the highest mixer level to maximize dynamic range. The input attenuator varies from 0 to 70 dB in 10 dB steps. If you need to probe your circuit, you can drive the probe using the connection available on the front panel. High impedance probes, such as the Agilent 41800A and 85024A. A buffered LO output can be used to drive tracking generators or other modules such as the external mixer interface module. 1 With Option H25 - It has 5 dB step attenuators. (for this unit please add $200) All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor. If in order to comply with our guarantee, we need to refund your money, you will get a FULL refund for the price of the unit... If you need to make use of the 15 days Guarantee - We will fix, or replace, your unit. In case every attempt to fix or replace it fails, we’ll refund your money. Be sure to add me to your favorites list! (Hp 70904A 100HZ to 2.9GHZ rf spectrum analyzer module. is the responsibility of Georgia Tyler) |
