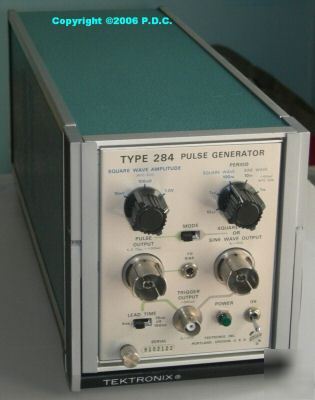

Tektronix 284 Pulse Generator NICE!!! looks to be in excellent condition with full 122 page operating/service manual on CD with the special AC Power Line Cord with GR874 to Type-N RF adapter This is a Tektronix TEK 284 Pulse Generator. The front panel is very clean. Case has a few scuff marks and small scratches as to be expected. This comes with the full manual on CD (122 pages) which has complete operating reference, theory of operation, and full service documentation with schematics. Comes with the special AC power line cord, and with an adapter to adapt the GR874 connector to a standard type N. Photo is representative since we have several of these units, they all are in same excellent cosmetic condition as seen in photos. - Pulse output: 70 pS Rise Time, 1uS Width, 50KHz Period - Square Wave Period: 10 µS, 1 µS, and 100 nS; - Square Wave Amplitude: 10 mV, 100 mV, and 1V - Sine Wave Period: 10nS and 1nS - Sine Wave Amplitude: 100 mV, and 1V - Trigger output is square wave, sine wave, or pretrigger pulse output (Tektronix 284 pulse generator &manual,cable,adapter wow is the responsibility of Corina Dyer) |
