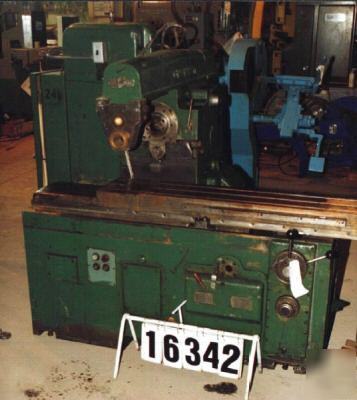

#200-112 CINCINNATI-MILACRON "POWERMATIC" HORIZONTAL-SPINDLE PRODUCTION MILL New 1957, Serial No 5B3P5E-14, Model 200-112, Table Dimensions (Overall) W x L........ 11" x 55.625" Table Working Surface, W x L............ 11" x 55.625" Table Longitudinal Travel (X-Axis)...... 24" Quill Cross Adjustment (Z-Axis)......... 3" Spindle-Carrier Vertical Travel (Power). 8" Horizontal-Spindle C/L to Table, Min.... 5" Horizontal-Spindle C/L to Table, Max.... 13" Table-Center to Spindle-Carrier......... 9.5" Table-Center to Spindle-Face, Minimum... 5.5" Table-Center to Spindle-Face, Maximum... 8.5" Quill Diameter.......................... 7" Spindle Taper........................... #50 NSTD Spindle Speeds, Range................... 50 to 2000 RPM Longitudinal Table Feeds, Range......... 1/2 to 20 IPM Vertical Spindle-Carrier Feeds.......... 1 to 40 IPM Power Rapid Table Traverse.............. 300 IPM Spindle Motor, Horsepower............... 7.5 HP Electrical System....................... 220-440/3/60 Floor Space Required, L x D............. 8'7" x 6'4" Overall Height.......................... 5'3" Weight, Approximately................... 7100 LBS PRICE: F.O.B. OUR WAREHOUSE............ $750.00 Note: 440 v. Control valve body was loose and leaks like a sive. One of the gibs for the head is snapped in half (we have the half still in the machine) There are no stop dogs. All machines/equipment subject to prior sale. (#200-112 cincinnati-milacron "pwrmatic" prod mill 16342 is the responsibility of Sadie Grant) |
sadie_grant@cedar--rapids.com (Sadie Grant) for more information.
