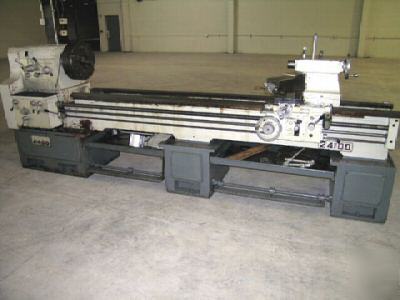

Liberty Machinery Company You are looking at a 24"/32" x 100"cc, Jet, 3-Jaw, 4-Jaw, 27" Face Plate, 3" Spindle Bore, In/MM Threading Serial No. 8120496HCondition - UsedNew - 1982 SPECIFICATION:Swing Over Bed and Carriage Wings 24" Swing Over Cross Slide 16-3/4" Hole through Spindle (Bore) 3.0" Spindle Speed Range (12) 25 - 1500 RPM Motor Horsepower - Continuous Duty 5 HP Tailstock Spindle Diameter 2-9/16" Tailstock Spindle Taper No. 4 Morse Inch Threads (38) from 4 - 80 T.P.I. Metric Pitches (35) from 0.5 - 7mm Pitch Diametral Pitches (27) from 8 - 112 D.P. Module Pitches (18) from 0.5 - 3.5 Mod. Feeds - Longitudinal Range .0016" - .025"/Rev. - Cross Range .0016" - .025"/Rev. Spindle Nose (Headstock) No. 8 D1 Camlock Approximate Dimensions 118" L x 42" W x 69" H EQUIPPED WITH:Inch/Metric Threading Heavy Duty Open Side Tool Post (24"/32" x 100" cc jet 3-4 jaw removable gap lathe is the responsibility of Shane Bowen) |
s-bowen@cedar--rapids.com (Shane Bowen) for more information.
