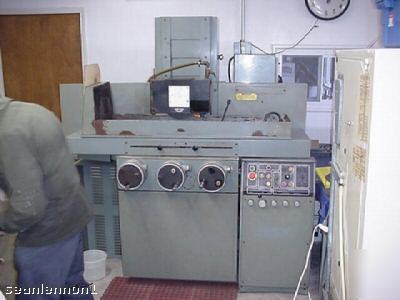

Catalog Specifications: . Electro magnetic chuck 8†x l8â€..... Max. height over chuck (under 7†wheel) approx. 19â€...... Max. long. table travel 22â€....... Maximum cross travel 9.5â€...... Maximum vertical travel of wheelhead 20â€....... Hole grinding wheel 8†o.d. x l†wide x 1-l/4â€...... Table speed longitudinal, vari rate 5 to 100 FPM..... Table cross feed incremental rate at each reversal .0l0†to .50â€...... Cross truing rate 0-20 IPM....... Cross travel travel rate 75 IPM...... Vertical powered rapid positioning of wheel head 32 IPM..... Equipped with: “Cycle size†- Auto Cycle System...... Power Down Feed....... Trabon Modu-Lube Auto Lube System...... O.S. Walker Electro-Magnetic Chuck..... Nuetrofier Rectifier..... Auto Cross Feed Reversal..... Coolant System....... 3 HP l800 RPM Spindle/230/460/3/60
(Brown & sharp techmaster surface grinder (3413) is the responsibility of Janell Michael) |
janellmichael@cedar--rapids.com (Janell Michael)
for more information.
