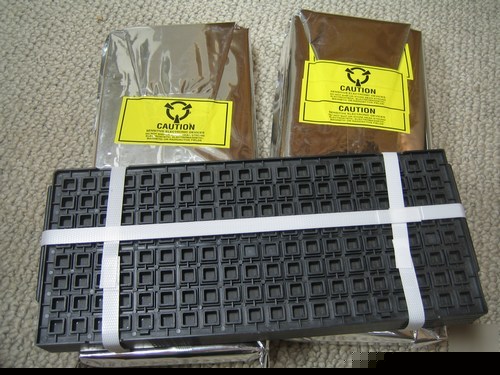

Altera EPM7032 Programmable Logic Device - 160 pcs! Another group of surplus parts and equipment from my old business, hobby and estate (but, hey, I'm still alive!) Brand new Altera EPM7032AETC44-10 Programmable Logic Device IC Chip 44 Pin Thin quad flat pack TQFP Package In circuit JTAG programming too! MAX 7000A (including MAX 7000AE) devices are high-density, high performance devices based on Altera’s second-generation MAX architecture. Fabricated with advanced CMOS technology, the EEPROM based MAX 7000A devices operate with a 3.3-V supply voltage and provide 600 to 10,000 usable gates, ISP, pin-to-pin delays as fast as 4.5 ns, and counter speeds of up to 227.3 MHz. MAX 7000A devices use CMOS EEPROM cells to implement logic functions. The user-configurable MAX 7000A architecture accommodates a variety of independent combinatorial and sequential logic functions. The devices can be reprogrammed for quick and efficient iterations during design development and debug cycles, and can be programmed and erased up to 100 times. MAX 7000A devices can be programmed in-system via an industry standard 4-pin IEEE Std. 1149.1 (JTAG) interface. ISP offers quick, efficient iterations during design development and debugging cycles. The MAX 7000A architecture internally generates the high programming voltages required to program EEPROM cells, allowing in-system programming with only a single 3.3-V power supply. During in-system programming, the I/O pins are tri-stated and weakly pulled-up to eliminate board conflicts. The pull-up value is nominally 50 k?. These have been programmed and marked at the distributor and you can simply reflash them with your program (you can see the chip and its markings in the picture). All brand spanking new!! http:// /literature/ds/m7000a.pdf (New altera EPM7032 programmable logic device - 160 pcs is the responsibility of Rebecca Fields) |
r-fields@cedar--rapids.com (Rebecca Fields) for more information.
