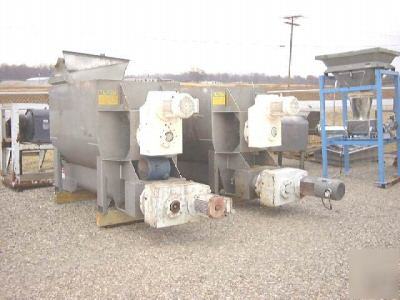

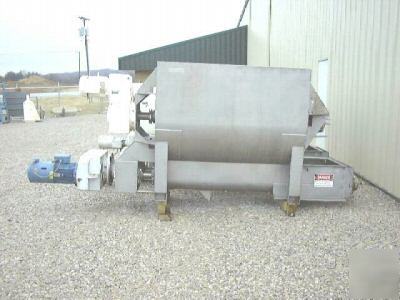

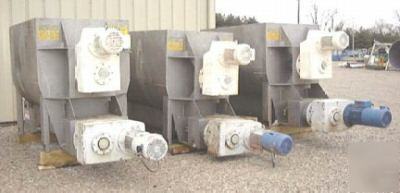

75 CUBIC FOOT SANITARY STAINLESS STEEL PADDLE BLENDERS MODELS 3000HB. S/N's 1956-A, 1956-C, 1956-D MANUFACTURED BY AMERICAN PROCESS SYSTEMS. FIVE UNITS AVAILABLE. 304 STAINLESS STEEL CONSTRUCTION. SHELL IS 7 GAUGE WITH END PLATES AND GUSSETS OF 1/4" THICK STAINLESS STEEL. LEGS ARE 3" X 6" RECTANGULAR TUBING. INTERNAL AND EXTERNAL WELDS ARE CONTINUOUS, GROUND SMOOTH AND POLISHED. ALL PRODUCT CONTACT SURFACES ARE POLISHED TO A SANITARY FINISH. EXTERIOR SURFACES HAVE A GLASS BEAD FINISH. BLENDER SHAFT: 4.25" DIAMETER 304 STAINLESS STEEL. CONFIGURATION OF BLENDER CONSISTS OF 2/3 OF LENGTH TO HAVE PADDLES AND REMAINING 1/3 LENGTH TO HAVE BREAKER BARS. TWIN SCREW DISCHARGE ARRANGEMENT. SCREW SHAFT: 3.5" SCHEDULE 80 PIPE, 304 STAINLESS STEEL WITH 12" DIAMETER VARIABLE PITCH FLIGHTING. DRIVE AND ALL NON 304 STAINLESS COMPONENTS ARE PRIMED AND PAINTED WITH PRATT & LAMBERT ALCYD / OIL ENAMEL # 1304 MICA OR EQUAL. BLENDER DRIVE IS EURODRIVE MOTOR: 1800 RPM, TEFC, 10 HP #DT100L4 . EURODRIVE REDUCER: SNUGGLER 139.92:1 RATIO, 12 RPM OUTPUT FAF-90. SCREW FEEDER DISCHARGE DRIVE IS EURODRIVE MOTOR 1800 RPM TEFC, 10 HP, 460/3/60 WITH EXTERNAL VENTILATOR #DV132M4-V. EURODRIVE REDUCER: SNUGGLER, 107.89:1 RATIO, #FAF-100. UNITS WERE ORIGINALLY INSTALLED WITH BLH LOAD CELLS ON ALL FOUR LEGS. THESE LOAD CELLS ARE AVAILABLE AT EXTRA COST IF WANTED. DISCHARGE SLIDE VALVE WITH STAINLESS STEEL AIR CYLINDER AND SOLENOIDS ON BOTTOM OF UNLOADING SCREWS. REFERENCE DRAWING AMERICAN PROCESS DWG # 2991 DATED 7-12-90. WEIGHT IS 7016 POUNDS APPROX. BUILT IN 1990. EXCELLENT CONDITION. OVERALL DIMENSIONS: 4' W x 13'-6" L x 5'-6" H. FOR ADDITIONAL ITEMS, VISIT OUR WEBSITE: (75 cubic ft sanitary paddle blendler; mdl 3000HB (1934) is the responsibility of Ellen Caldwell) |
E.caldwell@cedar--rapids.com (Ellen Caldwell) for more information.
