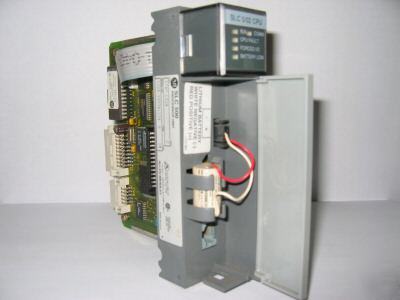

Selecting an SLC 500 Processor processor - based on memory, I/O, speed, communications, and programming requirements memory modules adapter sockets battery assembly With SLC 500 Modular Hardware Style controllers, you select the processor, power supply, and I/O modules to fit your application. Modular style chassis are available in 4-, 7-, 10-, and 13-slot versions. SLC 5/01 SLC 5/02 SLC 5/03 SLC 5/04 SLC 5/05 This processor offers a basic set of 51 instructions with the choice of 1K or 4K of memory in a modular hardware configuration. Modular I/O systems that include an SLC 5/01 processor can be configured with a maximum of three chassis (30 total slots) and from 4 I/O points to a maximum of 3940 I/O points. This processor offers additional complex instructions, enhanced communications, faster scan times than the SLC 5/01, and extensive diagnostics that allow it to function in more complex applications. Modular I/O systems can be configured with a maximum of 3 chassis (30 total slots) and from 4 I/O points to a maximum of 4096 I/O points. This processor provides 8K or 16K of memory. A built-in RS-232 channel gives you the flexibility to connect to external intelligent devices without the need for additional modules. Modular I/O systems can be configured with a maximum of 3 chassis (30 total slots) and from 4 I/O points to a maximum of 4096 I/O points. The standard DH-485 port has been replaced with a DH+â„¢ port, providing high-speed SLC 5/04-to-SLC 5/04 communications and direct connection to PLC-5 controllers. Modular I/O systems can be configured with a maximum of 3 chassis (30 total slots) and from 4 I/O points to a maximum of 4096 I/O points. The available memory options are 16K, 32K, or 64K. In addition, there is an SLC 5/04P option, which is designed specifically for the Plastics Industry and contains ERC2 algorithms for Plastics Machinery Control. The SLC 5/05 processor provides the same functionality as the SLC 5/04 processor with standard Ethernet communications rather than DH+ communications. Ethernet communication occurs at 10 Mbps or 100 Mbps, providing a high performance network for program upload/ download, online editing, and peer-to-peer messaging. Modular I/O systems can be configured with a maximum of 3 chassis (30 total slots) and from 4 I/O points to a maximum of 4096 I/O points. 64 SLC 500 Systems Selection Guide 1747-SG001B-EN-P — March 2005 SLC 500 Modular Controllers Specifications Specification SLC 5/01 SLC 5/02 SLC 5/03 SLC 5/04 SLC 5/05 ‡ Cat. No. 1747- L511 L514 L524 L531 L532 L541 L542 L543 L551 L552 L553 Memory Size (Words) 1K 4K 4K 8K 16K 16K 32K 64K 16K 32K 64K Backplane Current (mA) at 5V 350 mA 500 mA 1000 mA 1000 mA Backplane Current (mA) at 24V 105 mA 175 mA 200 mAô€€·ï€ 200 mA On-Board Communications DH-485 Slave DH-485 DH-485 and RS-232 DH+ and RS-232 Ethernet and RS-232 Optional Memory Module EEPROM flash EEPROM Programming Instructions 52 71 107 Typical Scan Time ô€€¹ 8 ms/K 4.8 ms/K 1 ms/K 0.9 ms/K After Loss of Power 20 ms…3 s (dependent on power supply loading) Bit Execution (XIC) 4 s 2.4 s 0.44 s 0.37 s Clock/Calendar Accuracy N/A ±54 seconds/month @ +25 °C (+77 °F) ±81 seconds/month @ +60 °C (+140°F) The scan times are typical for a 1K ladder logic program consisting of simple ladder logic and communication servicing. Actual scan times depend on your program size, instructions used, and the communication protocol. SLC 5/04 processors manufactured prior to April 2002 draw 200 mA @ 24V dc. Check the label to verify your processor's current draw. ‡ The 5/05 Series C processors can communicate to 100 Mbps and support increased connections: 1747-L551 = 32 connections; 1747-L552 = 48 connections; 1747-L553 = 64 connections. SLC 500 Systems Selection Guide 65 (Allen - bradley pcl scl 5/02 cpu is the responsibility of Francesca Browning) |
