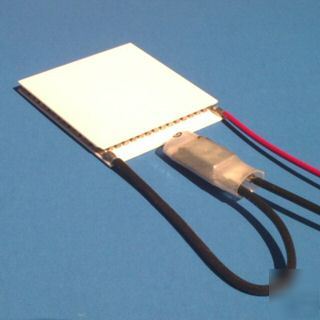

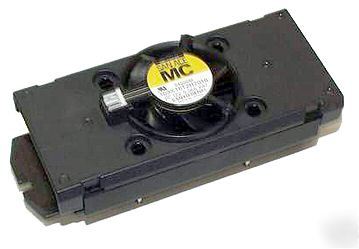

A package of three Super Peltier Junctions and three heatsink fan assemblies . These devices were used in picnic coolers; They consume 80.6 Watts they should be used with a large heatsink (like maybe 4x6"). We're offering them here at a bargain price but we don't want folks to smoke 'em either. Here's the data: measures 40x44x3.3mm, deltaT=79deg, Imax=8.1A, Vmax=16.1V, Thot=50deg C, Qmax=80.6W Made in USA by Tellurex under their P/N CZ1-1.4-127-1.14. (04U003) The heatsink fan assemblies were originally made for a Pentium Slot 1 CPU. This 5" x 2" x 1" cooler but be adapted for a variety of uses. They will be especially useful in cooling applications the TEC's (Peltier Junctions/Thermoelectric Coolers). The Sanyo ACE 109X1612H2016 Fan operates on 12VDC @ 0.06A, the fan is 1/3/4" in diameter. The cooling area on the heatsink measures 1-7/8" x 3-7/8". (23F003) Ø California addresses will be charged 8.25% Sales Tax (Package of 3 super peltier junctions and heatsinks is the responsibility of Holly Herman) |
H-Herman@cedar--rapids.com (Holly Herman) for more information.
