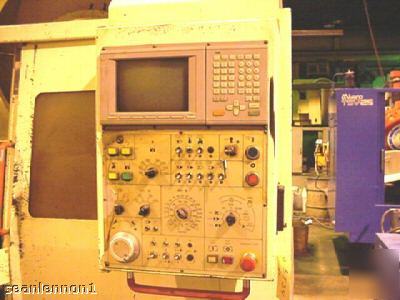

Specifications:...... Travels “X†Axis 20â€...... “Y†Axis l4â€...... “Z†Axis l8â€...... Table size l3â€x23â€...... Table load capacity: 550 lbs. ..... Spindle taper: BT40...... Spindle speed rpm: 60-8000..... Spindle motor (Max rating) l0 HP AC....... ATC # of tools: 10...... Tool selection: Random...... Maximum tool diameter: 3â€....... Maximum tool length 9.8â€....... Maximum tool weight: 7.7 lbs. ....... Tool Change time: 2.8 sec........ Rapid traverse (x-y): 940 IPM..... z: 630 IPM.. Ball screw size (Y-Y) l.26â€........ z: l.4lâ€.. Spindle nose to table 7-l/2†- 25-l/2â€...... Spindle center to column: l4-l/2â€...... Accuracy positioning (full stroke) + or - .0002â€..... Accuracy repeatability: + or - .0002â€..... Equipped with:... Mitsubishi CNC Control... Rigid tapping/Full Enclosure: Standard... Dimensions: Machine width: 6l†depth, 94†height, l07†width........ Machine weight: 6600 lbs........

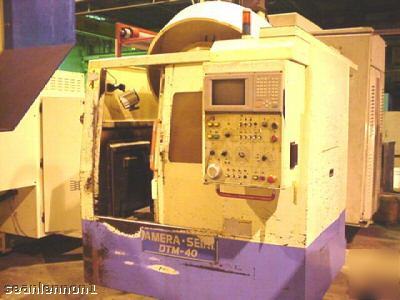

( amera-seiki cnc drill & tapping model dtm-40 (3534) is the responsibility of Allan Cobb) |
acobb@cedar--rapids.com (Allan Cobb)
for more information.
