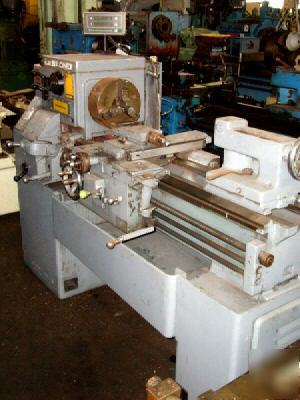

15" X 30" LEBLOND "REGAL" ENGINE LATHE W/DIGITAL New 1972, Serial No 8C-3561, Model "REGAL" Mitutoyo 2-Axis Digital Readout Hole Thru Spindle...................... 1-1/2" Swing Over Bed Ways, Actual............ 15-1/2" Swing Over Carriage Wings.............. 15-1/2" Swing Over Cross-Slide................. 9-1/2" Distance Between Centers............... 30" Cross-Slide Cross-Feed Travel.......... 8-7/8" Width Across Bed Ways.................. 12-3/16" Tailstock, Spindle Travel.............. 5" Tailstock, Spindle Taper............... #3 MT (12) Spindle Speeds, Range............. 45 to 1800 RPM (48) Carriage Longitudinal Feeds....... .0018 to .016 IPR (48) Thread Changes, Range............. 4 to 224 TPI Motor, Horsepower/RPM.................. 3 HP/1735 RPM Electrical System...................... 220-440/3/60 Floor Space Required, L x W............ 6'1" x 2'8" Weight, Approximately.................. 2300 LBS PRICE: F.O.B. OUR WAREHOUSE........... $5,950.00 All machines/equipment subject to prior sale. (15" x 30" leblond "regal" engine lathe w/dro #24521 is the responsibility of Dianna Bryant) |
D-Bryant@cedar--rapids.com (Dianna Bryant) for more information.
