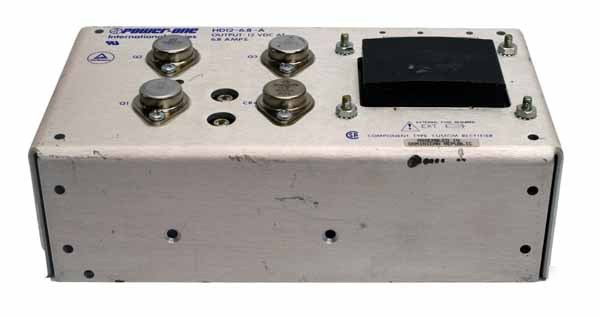

Power-One International HD12-6.8-A Supply 12V DC 6.8A Power One Intl. HD12-6.8-A Power Supply 12V DC 6.8A HD12-6.8-A 12V @ 6.8A (Note 5) D • World-wide AC input ranges and safety standards • UL/CSA TUV/IEC approved—68 models to UL1950; CSA C22.2 No. 234 L3; TUV certified to IEC950 • Burn-in with cycling; 3-year warranty • Capacitors have highest CV & ripple current ratings 100, 120 and 240Vac: +10%, -13%; 215Vac: +12%, -11 %; 47 to 63Hz. Tolerance for 230Vac operation is +15%, -10%. Derate output current 10% for 50Hz operation. See voltage rating chart. Adjustment range ±5% minimum except HA ± 0.05% for a 50% load change. 3mV +0.05% of output voltage, peak to peak maximum. All “3-terminal regulator†outputs: 3mV +0.2% peak to peak maximum. <50 microseconds for 50% load change. Automatic current limit/foldback. If you require more detailed specifications, please contact the manufacturer for technical support. (Worldwide including Hawaii, Alaska, Canada) This warranty excludes consumable goods. Consumable goods are not guaranteed to come with the item unless otherwise noted in the item description. Consumable goods includes: toner, ink cartridges, bulbs, and batteries. All California residents will be charged CA sales tax during the Checkout process. Please click on the links below for answers frequently asked questions about that category. Questions? Check out our Frequently Asked Questions page for detailed answers. Request for return merchandise authorization (RMA) Call us. (Monday-Friday 10AM-6PM PST) Mailing address for money orders and checks Tel: (***) 757-3863 (Toll Free) (Power-one international HD12-6.8-a supply 12V dc 6.8A is the responsibility of Aileen Knight) |
