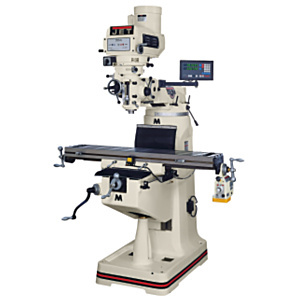

Jet CNC Vertical Milling Machine Package 3-axis Feature OF THE ANILAM 3000M 2 OR 3 AXIS CONTROL Utilizes a machinist's type language-easy conversational programing (No learning of G-Codes required) On-screen editing and help graphics, DXF and G-code conversion, which will save time and increase the productivity 12.1" active matrix TFT flat panel, color display Built in calculator with three modes: basic math, right triangle and geometry, to provide Geometry assistance You can go from manual operations to CNC in seconds Heavy Duty AC brushless servo motors Bolt hole patterns of any configuration can be easily produced The addition of DSP 2, an enhanced motion control system, means greater increases in productivity and much higher speed machining The Series 3000M is the most user-friendly conversational program Store programs on the hard drive for repeat jobs Provides all manual operations. Ideal for set up and teach modes and for machining the simplest parts 2-axis can be easily upgraded to 3-axis at any time Precision-ground ballscrews with preloaded ball nut assemblies The 3000M gives you more programing flexibility with hard drives that have storage capabilities ranging from large CAM-generated programs to average size daily functioning programs The simplified look of the CNC control software includes a timer and parts counter Hard limits protect the possible damage to a machine when over traveled Feature OF THE ACU-RITE MILLPWR® 2 OR 3 AXIS CONTROL Increased Productivity, mill more efficiently and effectively Bolthole Calculations, calculate bolthole patterns instantly Jog Control, move quickly from one location to another- using one axis at a time or any two axes simultaneously 3-D Contouring, ability to import and run G-code files form CAD/CAM programs Mirror/Repeat/Rotate, easily manipulate part programs to save time and reduce program steps. Ease of use, convenient, user-friendly and multi-faceted Menu-prompted Conversational programming, easily create part programs, edit, reverse, change, delete and copy/move steps - follow the menu prompts and let MILLPWR do the rest Info Button, built in help screens for content specific jobs Built-in Calculator, perform standard, trig and geometry calculations and transfer them directly into part programs Versatility, mill and program simultaneously Distance Spindle to Column (in.) 19 Distance Spindle to Column (min./in.) 6-3/4 2 or 3 axes Control/ 3 axes Readout, significantly improves efficiency, productivity and profitability, may be used automatically or manually Teach Position, use a tool, electronic edge finder or indicator to create a program from an existing part ACU-RITE precision glass scales to provide better accuracy, repeatability, high resolutions (2um/.001"), fast slow speeds (40" per sec) and elimination of backlash compensation Gound hardened ball screws, heavy-duty AC brushless servo motors, sturdy operator Feature, die-cast metal enclosures, sealed keypads and recessed interlocking lipseals Feature FOR THE JTM-4VS Precision bored and honed milling head Large diameter quill is chromed High precision Class 7 spindle bearings Spindle head is internally cooled Heavy-duty splined motor drive One-piece quill pinion and shaft Three-stage powet downfeed with automatic stop Chrome plated motor shaft with lower bearing support Internal coolant tank built into base for use with coolant system (Coolant pump not included) Precision hardened and ground ways and table Head Movement (deg.) 90° R & L 45° F & B Max Distance Spindle to Table ( in.) 17-1/2 Motor 3HP, 230/460V, 3Ph, Prewired 230V Number of Spindle speeds Variable Overall Dimensions 65-1/2 x 63 x 85 Quill Down feed Rates (IPR) .0015 – .003 – .006 Range of Spindle Speeds (RPM) 60 – 4,200 T-Slots Number and Size (in.) 3 and 5/8 Table Longitudinal Travel (in.) 34 Work Table Weight Capacity (lbs.) 660 We require a physical address on all items (Jet cnc vertical milling machine package 3-axis #690918 is the responsibility of Ola Anderson) |
Ola_Anderson@cedar--rapids.com (Ola Anderson) for more information.
