GrooveTube® High Performance VNA Test Cable MegaPhase® VN Series: Features: Low Cost Alternative to OEM Test Cables Best Phase & Amplitude Stability Phase Matching Available Armored Jacket and Boot DC-67GHz Applications: VNA Test Calibration Scalar Test NEW! 67 GHz MegaPhase® Test Cables GrooveTube® VNA Test Cable - Standard Connectors 2.4 mm to 50 GHz* 2.92 mm (K) to 40 GHz* 3.5 mm to 34 GHz* SMA to 26.5 GHz 7 mm to 18 GHz Type N to 18 GHz TNC to 18 GHz 1.85 mm (V)* * Also available in the ruggedized VNA port. Other connectors available on request. Typical Insertion Loss Max. Attenuation vs. Frequency (GHz) Part Number Attenuation dB/foot Attenuation dB/meter Connector Loss dB SWR (x.xx:1) 0.512 UHF VN4 0.08 0.27 0.02 1.04:1 0.900 0.11 0.36 0.02 1.05:1 1.000 L 0.12 0.39 0.02 1.900 0.17 0.56 0.03 1.10:1 2.000 S 0.17 0.57 0.03 3.000 0.22 0.73 0.04 4.000 C 0.26 0.86 0.04 1.20:1 6.000 VN8 0.34 1.10 0.06 8.000 X 0.40 1.31 0.07 1.25:1 10.000 VN18 0.46 1.50 0.08 12.400 0.53 1.74 0.08 14.000 Ku 0.58 1.89 0.09 1.30:1 18.000 0.69 2.26 0.11 20.000 K VN26 0.74 2.44 0.12 22.000 0.79 2.61 0.13 26.500 0.91 2.99 0.15 1.35:1 28.000 Ka VN40 0.95 3.11 0.16 30.000 1.00 3.27 0.17 1.40:1 32.000 1.05 3.43 0.18 38.000 1.19 3.90 0.22 1.45:1 40.000 1.24 4.06 0.25 50.000 mm VN50 1.47 4.82 0.37 1.50:1 GrooveTube® VNA Test Cable Electrical Data Maximum Frequency 67 GHz - limited by connector interface Impedance 50 ohm, nominal Velocity of Propagation 69%, nominal Time Delay 1.47 ns/ft 4.82 ns/m Capacitance 29.0 pF/ft 95.1 pF/m GrooveTube® VNA Test Cable Mechanical Data Jacketed Outer Diam. 0.625 inches, nominal 15.88 mm, nominal Jacket Type* PET Braid Protection Metal Braid over Metal Armor Bend Radius 1.500 inches, nominal 38.10 mm, nominal Operating Temperature -76 to 250°F -60 to + 121°C Weight 0.175 lbs/ft 0.26 kg/m Outer Conductor Copper GrooveTube® Dielectric PTFE Inner Conductor Solid Ag-plated Cu *Other jacket types available upon request. See ordering information. For Attenuation & Power Derating Curves, Here. What is

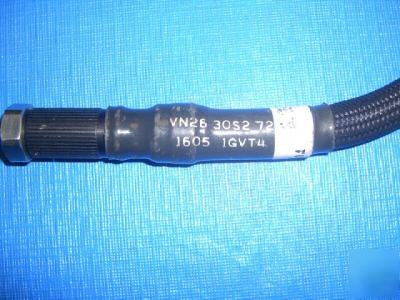

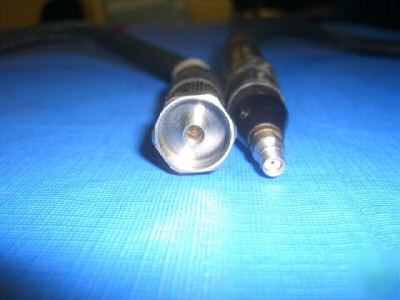

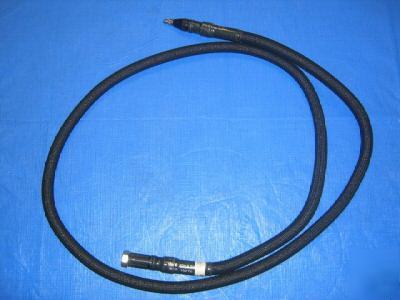

(Megaphase VN26 26.5GHZ vna microwave cable is the responsibility of Clara Wilkinson) |
C_Wilkinson@cedar--rapids.com (Clara Wilkinson) for more information.
