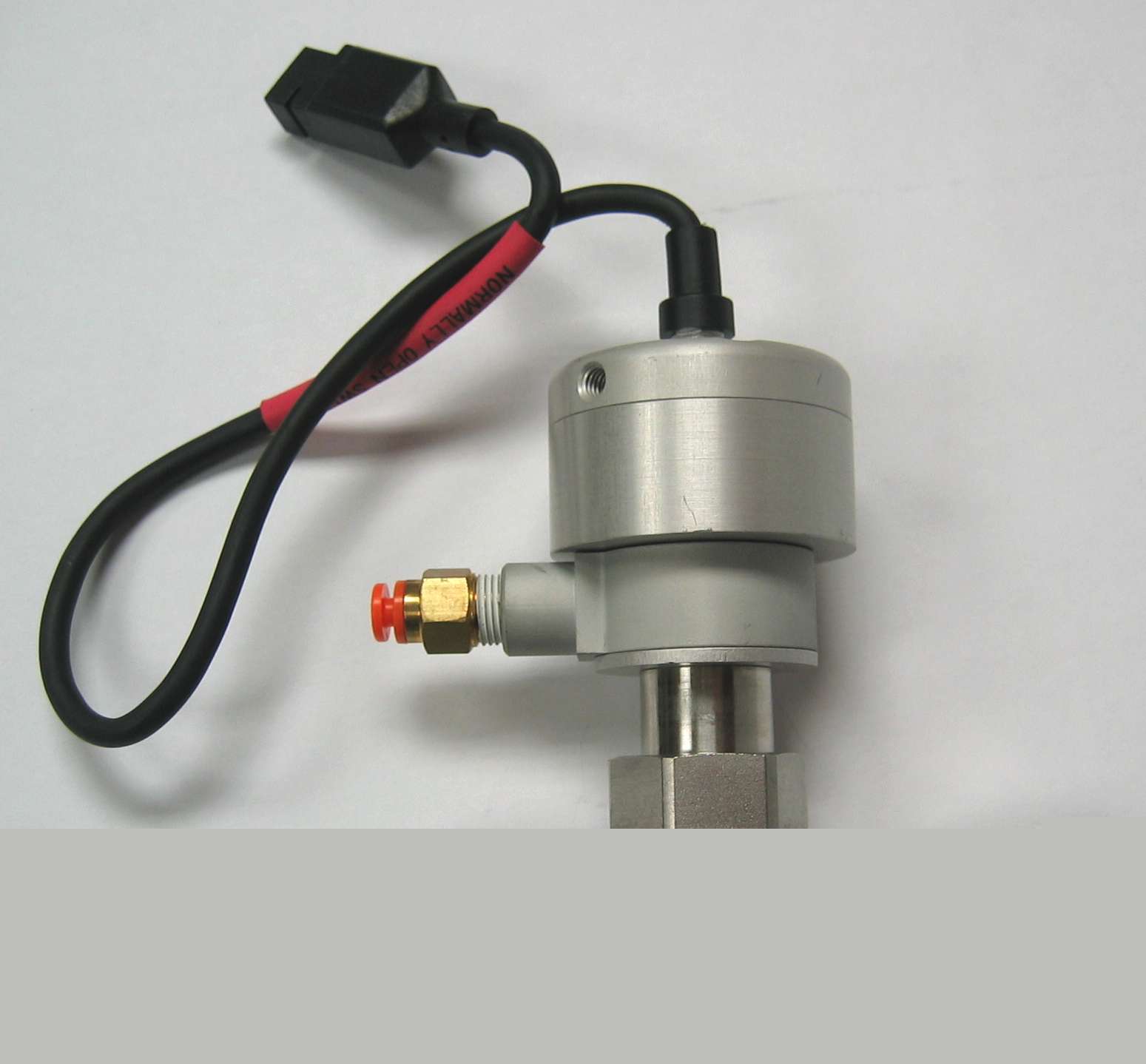

This is a pneumatically actuated, normally closed stainless steel Swagelok/Nupro valve with 1/4" VCR fittings. It is equipped with a position indicator switch. * Swagelok (Nupro) SS-4BK-V51-1CM * gasketed construction allows for easy maintenance * pneumatically actuated, normally closed configuration; air to open, spring to close * 1/8" NPT port for pneumatic actuator; currently fitted with a push-to-connect fitting for 1/8" OD polymer tubing * position indicator switch, normally open (switch closes when valve is opened) * Full details are available in Swagelok's B Series literature (~ 1 MB .PDF file). (Click on thumbnail below to view higher quality image.) This valve is used, but appears to be in very nice condition. It checks out leak-free (both across the poppet and across the body, bellows, etc.) as checked by a helium mass spec. leak detector. Questions - please ask. Thanks for looking! (Swagelok nupro stainless steel valve with 1/4" vcr is the responsibility of Lolita Hester) |
