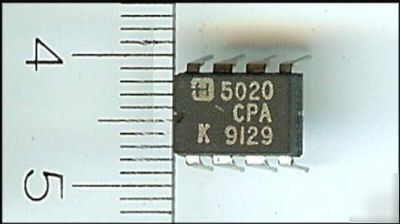

Now over 1,300 items in our Store! Please note: The following spec sheet / information is provided by the manufacturer and may cover several different items and/or products. I am offering the part listed in the heading and picture ONLY. • Switches Analog Signals Up to 20 Volts Peak-to-Peak • Each Channel Complete - Interfaces with Most Integrated Logic • Switching Speeds Less Than 0.5 D(OFF) Less Than 500pA Typical at 70oC • Commercial and Military Temperature Range Operation The IH5009 series of analog switches were designed to fill the need for an easy-to-use, inexpensive switch for both industrial and military applications. Although low cost is a primary design objective, performance and versatility have not been sacrificed. Each package contains up to four channels of analog gating and is designed to eliminate the need for an external driver. The odd numbered devices are designed to be driven directly from TTL open collector logic (15 volts) while the even numbered devices are driven directly from low level TTL logic (5 volts). Each channel simulates a SPDT switch. SPST switch action is obtained by leaving the diode cathode unconnected; for SPDT action, the cathode should be grounded (0V). The parts are intended for high performance multiplexing and commutating usage. A logic “0†turns the channel ON and a logic “1†turns the channel OFF. for other great component bargains on Microprocessors, Transistors, Capacitors, IC's, Transformers, Diodes, Crystals, and more! And we salute our friends in other countries around the world! (5020 / IH5020CPA / 5020CPA / harris is the responsibility of Reyna Cummings) |
