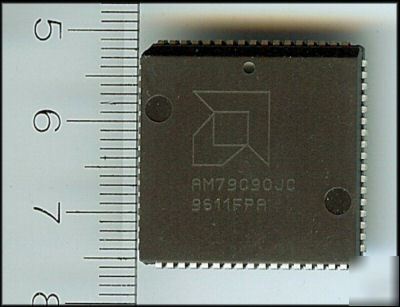

Now over 1,300 items in our Store! Please note: This spec sheet may cover several different parts. CMOS Local Area Network Controller for Ethernet Compatible with Ethernet and IEEE 802.3 10BASE-5 Type A, and 10BASE-2 Type B, “Cheapernet,†10BASE-T Easily interfaced with 80x86, 680x0, Am29000â,Z8000™ microprocessors On-board DMA and buffer management, 64-byte Receive, 48-byte Transmit FIFOs 24-bit-wide linear addressing (Bus Master Mode) Network and packet error reporting Back-to-back packet reception with as little as 0.5ms interframe spacing * — Internal/external loopback * — Time domain reflectometer Low power consumption for power-sensitiveapplications Completely software- and hardware-compatible with AMD’s LANCE device (Am7990) The Am79C90 CMOS Local Area Network Controller for Ethernet (C-LANCE) is a 48-pin VLSI device designed to greatly simplify interfacing a microcomputer or minicomputer to an IEEE 802.3/Ethernet Local Area Network. The C-LANCE, in conjunction with the Am7992B Serial Interface Adapter (SIA), Am7996 or Am79C98 and Am79C100 Transceiver, and closely coupled local memory and microprocessor, is intended to provide the user with a complete interface module for an Ethernet network. The Am79C90 is designed using a scalable CMOS technology and is compatible with variety of microprocessors. On-board DMA, advanced buffer management, and extensive error reporting and diagnostics facilitate design and improve system performance. for other great component bargains on Microprocessors, Transistors, Capacitors, IC's, Transformers, Diodes, Crystals, and more! And we salute our friends in other countries around the world! (79C90 / AM79C90JC / AM79C90 / controller for ethernet is the responsibility of Kimberly Kirby) |
