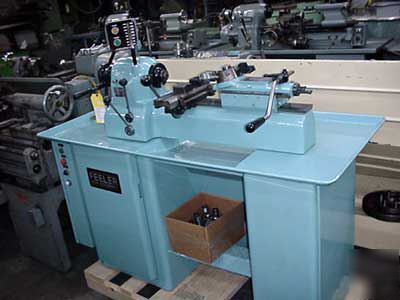

Feeler Model FTS 27, 9" x 36" Second Operation Lathe, S/N: 730421 * Spindle capacity: 1-1/16" Round 5C Collets * Variable spindle speeds: 230 - 3500 RPM * Travel of double tool cross slide: 3-3/4" * Travel of turret slide: 4" * Diameter of turret holes: 5/8" * Coolant sump capacity: 3 gallons * Estimated dimensions: 74" x 35" x 68" high * Estimated net weight: 1,000 lbs. * Estimated gross weight: 1,364 lbs. * Fully enclosed pre-loaed ball bearing headstock * Tool storage compartment with sliding ball bearing collet tray * Ball bearing lever collet closer * Solid hardened & ground steel bed ways * Automatic indexing, 6-position turret with pre-loaded ball bearing head * Welded steel pedestal with knee space * Direct reading spindle speed indicator * Infinitely variable speed drive complete with 2-speed reversing motor * Built-in coolant facilities with sump and self-draining oil pan * Automatic driveshaft brake * Push button control for variable speed drive (Feeler model fts 27, 9" x 36" second operation lathe is the responsibility of Tamara Butler) |
