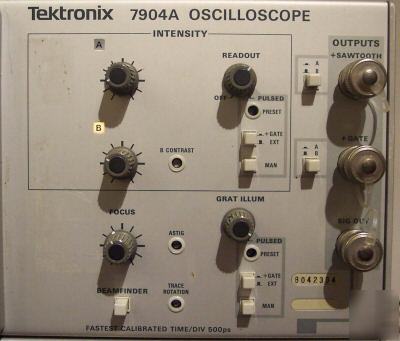

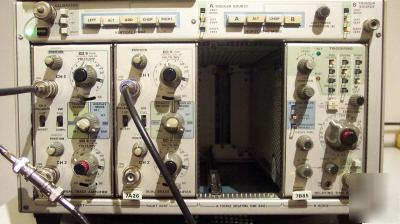

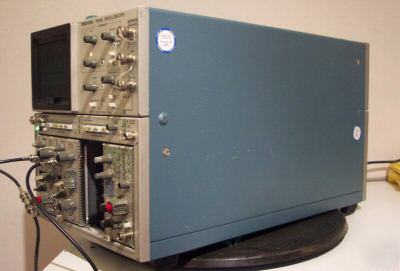

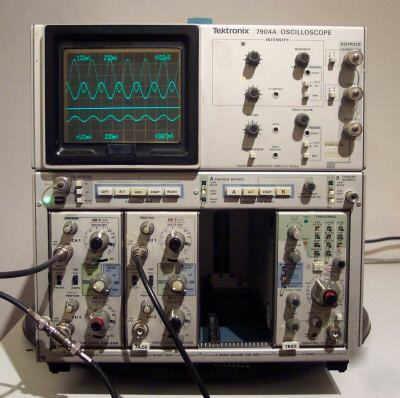

Vietronix! Test Equipments Store's. 3146 Millbrook Dr. Contact hours by phone: San Jose Ca 95148 Mon - Fri 4:00pm - 10:00pm PST Business: (***)-557-1430 Sat - Sun 9:00am - 9:00pm PST Condition: Used but in excellent physical condition. The unit is working condition and tested. 7 days full warranty, please see term and condition for more detail. Unit Included: The Main Frame also installed Option 2 and Option 3. 7B85 Delay Time Base Plug in. 2X - 7B26 Amplifier Plug in.. 7904A Original Manual. A CD-ROM contained all 7000 series the plug in operator manuals. Descriptions and features: The Tektronix 7904A Oscilloscope is a solid-state, high performance 500Mhz vertical bandwidth instrument designed for general purpose applications. The 7904A accepts four 7000-series plug-in units for form a highly flexible oscilloscope system. The left pair of plug-in compartments are for vertical deflection and the right pair of plug-in compartment are for horizontal deflection. Electronic switching between each deflection system allows dual-trace vertical and dual-sweep horizontal displays. Option 2: Provides phase correction when operating in the X-Y mode. A delay compensation network is added to equalizes the signal delay between the vertical and horizontal deflection systems. When the compensation network is installed and activated, the phase shift between the vertical and horizontal channels is adjustable to less than 2â—¦ from dc to 1 Megahertz. Option 3: Enables the 7904A to meet the EMC - Electromagnetic Compatibility - 7 Days Full Warranty: The items are 7 days warranty unless specified in description. DOA: Guarantee against Dead On Arrival. Canada + Alaska + Hawaii fixed rate: $ 88.00US Dollars. United Kingdom + Sweden fixed rate: $226.00US Dollars. Belgium + France + Germany + Spain + Italy + Switzerland + Netherlands fixed rate: $220.00US Dollars. (Tektronix 7904A 500MHZ oscilloscope w/ plug-in modules is the responsibility of Hillary Wolfe) |
