LINBO3 10GB ampl modulator. lithium niobate (10 lot)


LINBO3 10GB ampl modulator. lithium niobate (10 lot)

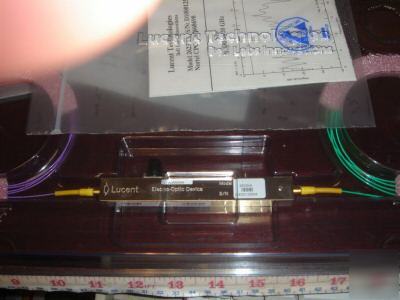

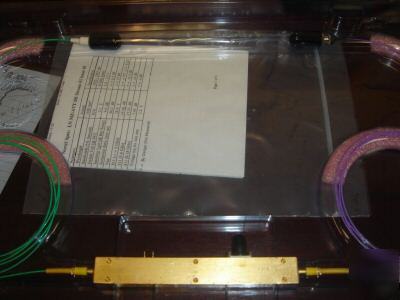

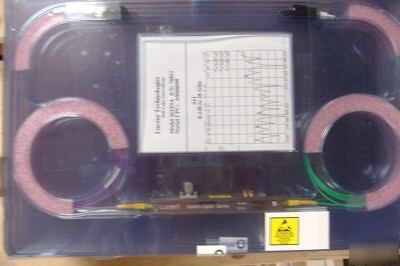

10 units of new in box lucent 2623na 10 Gbits/s Lithium Niobate Electro-Optic Modulator 10 Gbits/s Lithium Niobate Electro-Optic Modulator Data Sheet May 2001 The Lithium Niobate Modulators include three single-drive modulators (2623N, 2623Y, 2623CS) and a single-drive modulator with an integrated attenuator (2623CSA). All devices are capable of modulation rates up to 10 Gbits/s. Features n Ti-diffusion process n Single-drive technology n C- and L-band models n Slim, hermetic package n Bandwidths up to 10 GHz n Operational over a temperature range of 0 °C to 70 °C n 43 W design for minimal electrical reflections n Angled interfaces for minimal optical reflections n Integrated optical attenuator available on 10 Gbits/s modulator (2623CSA) n Tested to Telcordia Technologies * 468 Benefits n Excellent long-term bias stability n Internal polarizer n Low modulation voltages Applications n Digital high-speed telecommunications: — SONET: OC-1 through OC-192 — SDH: STM-16, STM-64 — Undersea communications n Internet data communications n SONET/SDH test equipment * Telcordia Technologies is a trademark of Telcordia Technologies, Inc. Data Sheet 10 Gbits/s Lithium Niobate Electro-Optic Modulator May 2001 2 Agere Systems Inc. Description The 10 Gbits/s Electro-Optic Modulator is designed for long-wavelength, single-mode external amplitude modulation applications. It uses an integrated Mach- Zehnder configuration to convert single polarization CW light from a semiconductor (DFB) laser into a timevarying optical output signal. Agere Systems Inc. also offers a 10 mW CW laser with polarization-maintaining fiber (D2525P) to use as a source for the modulator. The Ti-diffusion process is a standard feature on all modulator devices. The 2623N, 2623Y, and 2623CS are single-drive, 10 Gbits/s modulators; the 2623CSA is a single-drive, 10 Gbits/s modulator with an attenuating section. Variable attenuation to >19 dB is achieved through a dc bias voltage. The package is hermetic to protect the LiNbO3 die from the environment. Novel processing techniques now make it possible to achieve 20-year operation with little drift in the dc bias point. The modulator is tested to, and meets the intent of TR-NWT-00468. Other standard features include PANDA-type polarization- maintaining fiber (PMF) for the optical input (all codes) and output (2623N, 2623Y, and 2623C) fiber with FC-type connectors that are keyed to the axis of polarization. Custom designs are available. Absolute Maximum Ratings Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress ratings only. Functional operation of the device is not implied at these or any other conditions in excess of those given in the operational sections of the data sheet. Exposure to absolute maximum ratings for extended periods can adversely affect device reliability. Parameter Symbol Min Max Unit Storage Temperature Tstg –40 85 °C Optical Input Power @ 1.5 mm PIN — 30 mW RF Voltage (peak to peak) VRF — 10 V dc Voltage (RF input) VdcRF –20 20 V dc Voltage (Attenuator input) VdcATT –25 25 V Operating Temperature TOP 0 70 °C Data Sheet May 2001 10 Gbits/s Lithium Niobate Electro-Optic Modulator Agere Systems Inc. 3 Optical/Electrical Characteristics * Bandwidth stated is electrical-optical-electrical as determined by the ratio of the received RF electrical power (at a photodiode) relative to the RF electrical power used to drive the modulator. This response is referenced to the value at 130 MHz. Note: Circuitry in dotted lines is used only with the 2623CSA. Figure 1. Recommended Operating Circuit Diagram Figure 2. Equivalent Circuit Diagram Table 1. Optical/Electrical Characteristics Parameter Min Typ Max Unit Operating Wavelength: C-band L-band 1525 1565 — — 1565 1620 nm nm Insertion Loss: 2623N, 2623Y, 2623CS 2623CSA 3 3.5 3.7 4.5 5.5 6.5 dB dB Extinction Ratio @ dc 20 27 — dB Extinction Ratio @ RF — 13 — dB S11 Optical Return Loss — — –35 dB Bandwidth* 8 10 — GHz Drive Voltage (Vp) @ dc 2.8 3.1 4.0 V Drive Voltage (Vp) @ 1 GHz 3.5 4.1 5.0 V Attenuation Voltage @ –19 dB 15 19 22 V Electrode Impedance — 43 — W S11 Electrical Return Loss (0.13 GHz—5 GHz) — –15 –13 dB S11 Electrical Return Loss (5 GHz—10 GHz) – –14 –12 dB S11 Electrical Return Loss (10 GHz—18 GHz) — –8 –6 dB MODULATOR DRIVER BIAS TEE dc BIAS CONTROLLER PHOTODETECTOR/ PREAMP dc ATTENUATION CONTROLLER HIGHSPEED DATA INPUT PMF CW-LASER 2623N, 2623Y, 2623CS, 2623CSA SPLITTER SEE NOTE. 2623N, 2623Y, 2623CS 43 W 0.2 mF 43 W 0.2 mF –10 pF 2623CSA 1-1063 (F) 1-1062 (F) Data Sheet 10 Gbits/s Lithium Niobate Electro-Optic Modulator May 2001 4 Agere Systems Inc. Optical/Electrical Characteristics (continued) Electrical Signal Input Electrical signal input is made through SMA coaxial connectors. The standard device includes an internal termination network. Care must be taken not to exceed the recommended 8 in./lb. of torque when making connections to these inputs. High-frequency coaxial cable is recommended. Characteristic Curves Figure 3. Magnitude of Electro-Optic Response, 0.130 GHz—20 GHz. Figure 4. S11, 0.130 GHz—20 GHz Figure 5. Output Power vs. Bias Voltage . Figure 6. Optical Power vs. Attenuator Bias Voltage dBe COR AVG START .130 000 000 GHz STOP 20.000 000 000 GHz CH1 E/O LOG MAG3 dB/ REF –55.48 dB 1: –55.846 dB W/A 4 HID FREQUENCY SMA POWER (3dB/div) 1 2 4 3 1. 130 000 000 GHz 4. –61.766 dB 18.76 48 GHz 2. –55.476 dB 0.9248 GHz 3. –58.476 dB 9.9690 GHz dBe COR START .130 000 000 GHz STOP 20.000 000 000 GHz CH1 S11 LOG MAG 5 dB/ REF 0 dB 1: –18.896 dB HID FREQUENCY POWER (3 dB/div) 1 2 4 3 1. 924 000 000 GHz 4. –8.7734 dB 14.7344 GHz 2. –15.278 dB 3.7006 GHz 3. –16.27 dB 5.0975 GHz 0 –10 –20 –30 –40 –50 –20 –10 0 10 20 MODULATOR dc BIAS VOLTAGE (V) OPTICAL POWER OUT (dB) 1-1060(F) 1-898 (C) 0 –10 –20 –30 –40 –50 –40 –20 0 20 40 ATTENUATOR BIAS VOLTAGE (V) OPTICAL POWER (dB) –60 –30 –10 10 30 START = –23.98 V STOP = 25.58 V 1-1061(F) 1-1058(F) 1-1059(F) Data Sheet May 2001 10 Gbits/s Lithium Niobate Electro-Optic Modulator Agere Systems Inc.. 5 Outline Diagrams Dimensions are in inches and (millimeters). 2623N, 2623Y, 2623CS Lithium Niobate Modulators SMA SHORTING CAP FIELD-REPLACEABLE SMA CONNECTOR BEND LIMITER 2 PLACES FC/PC CONNECTOR OPTIONAL 2 PLACES Agere Electro-Optic Modulator Model S/N A06686 98 2623N XXXX 0.20 (5.1) 1.20 (30.5) 0.14 (3.6) 1.5 METER MAXIMUM LOOSE-TUBE JACKETED FIBER 2 PLACES 2623N S/N XXXX A0668698 014097001 0.32 (8.1) 0.43 #4-40 UNC 2B 0.12 (3.05) DEEP MIN, 6 PLACES 4.64 (117.9) 0.60 (15.2) 0.39 (9.8) 0.20 (5.11) 1.53 (38.9) 4.00 (101.6) 2.00 (50.8) 0.09 (2.2) (10.8) INPUT 1-1064(F)a Data Sheet 10 Gbits/s Lithium Niobate Electro-Optic Modulator May 2001 6 Agere Systems Inc. Outline Diagrams (continued) 2623CSA Lithium Niobate Modulator 1-1064F.c SMA SHORTING CAP FIELD-REPLACEABLE SMA CONNECTOR BEND LIMITER 2 PLACES FC/PC CONNECTOR OPTIONAL 2 PLACES Agere Electro-Optic Modulator Model S/N A06686 98 2623CSA XXXX 0.20 (5.1) 1.20 (30.5) 0.14 (3.6) 1.5 METER MAXIMUM LOOSE-TUBE JACKETED FIBER 2 PLACES 2623CSA S/N XXXX A0668698 014097001 0.32 (8.1) 0.43 #4-40 UNC 2B 0.12 (3.05) DEEP MIN, 6 PLACES 4.64 (117.9) 0.60 (15.2) 0.39 (9.8) 0.20 (5.11) 1.53 (38.9) 4.00 (101.6) 2.00 (50.8) 0.09 (2.2) (10.8) INPUT ATTENTION ELECTROSTATIC SENSITIVE DEVICES ATTENUATOR PIN # 2 ATTENUATOR PIN # 1 Data Sheet May 2001 10 Gbits/s Lithium Niobate Electro-Optic Modulator Agere Systems Inc.. 7 Package Information Designed to NEBS (inside plant) standards, the hermetic package design incorporates a laser-sealed lid and soldered fibers. The minimum bend radius for the fiber is 1.5 in. To prevent warping, use only the two center screws to mount the device. Ordering Information Table 2. Package Information Description Type Input Optical Fiber (all codes) PANDA-type PMF Output Optical Fiber: 2623N, 2623Y, 2623CS 2623CSA PANDA-type PMF Standard Single-mode Fiber Connector FC Fiber Length 1.5 m max RF Connector SMA Package Dimensions See Outline Drawings, page 5, 6. Table 3. Device Information Part Number Minimum Bandwidth (GHz) Attenuator C-Band L-Band Comcode 2623N 8 No Yes Yes 1077393100 2623Y 9 No Yes Yes 108864604 2623CS 10 No Yes Yes 107862823 2623CSA 8 Yes Yes Yes 108433954 Data Sheet 10 Gbits/s Lithium Niobate Electro-Optic Modulator May 2001 For additional information, contact your Agere Systems Account Manager or the following: INTERNET: http:// E-MAIL: jaclynsloan@cedar--rapids.com N. AMERICA: Agere Systems Inc., 555 Union Boulevard, Room 30L-15P-BA, Allentown, PA 18109-3286 1-(***)-372-2447, FAX (***)-712-4106 (In CANADA: 1-(***)-553-2448, FAX (***)-712-4106) ASIA PACIFIC: Agere Systems Singapore Pte. Ltd., 77 Science Park Drive, #03-18 Cintech III, Singapore 118256 Tel. (65) 778 8833, FAX (65) 777 7495 CHINA: Agere Systems (Shanghai) Co., Ltd., 33/F Jin Mao Tower, 88 Century Boulevard Pudong, Shanghai 200121 PRC Tel. (86) 21 50471212, FAX (86) 21 50472266 JAPAN: Agere Systems Japan Ltd., 7-18, Higashi-Gotanda 2-chome, Shinagawa-ku, Tokyo 141, Japan Tel. (81) 3 5421 1600, FAX (81) 3 5421 1700 EUROPE: Data Requests: DATALINE: Tel. (44) 7000 582 368, FAX (44) 1189 328 148 Technical Inquiries:OPTOELECTRONICS MARKETING: (44) 1344 865 900 (Ascot UK) Agere Systems Inc. reserves the right to make changes to the product(s) or information contained herein without notice. No liability is assumed as a result of their use or application. Copyright © 2001 Agere Systems Inc. All Rights Reserved May 2001 DS00-331OPTO-2 (Replaces DS00-331OPTO-1) Features Ti-diffusion process Single-drive technology Operation at 1.55mm wavelength Slim, hermetic package Bandwidths up to 20 GHz Operational over a temperature range of 0C to 70C 43W design for minimal electrical reflections Angled interfaces for minimal optical reflections Integrated optical attenuator available on 10 Gbits/s modulator (2623NA) Tested to Bellcore 468 Benefits Excellent long-term bias stability Internal
polarizer Low modulation voltages Applications Digital high-speed telecommunications — SONET: OC-1 through OC-192 — SDH: STM-16, STM-64 — Undersea communications Internet data communications SONET/SDH test equipment The Lithium Niobate Modulators include a single-drive modulator (2623CS) and a single-drive modulator with an integrated attenuator (2623NA). Both devices are capable of modulation rates up to 10
(LINBO3 10GB ampl modulator. lithium niobate (10 lot) is the responsibility of Jaclyn Sloan)
Contact: jaclynsloan@cedar--rapids.com (Jaclyn Sloan) (actual email hidden)
Contact jaclynsloan@cedar--rapids.com (Jaclyn Sloan) for more information.
