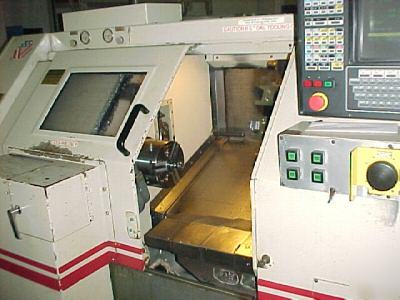

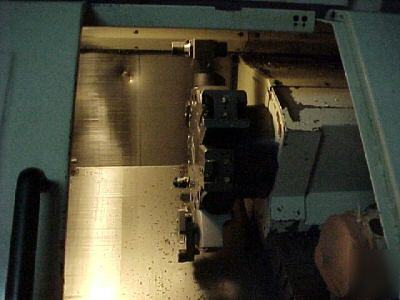

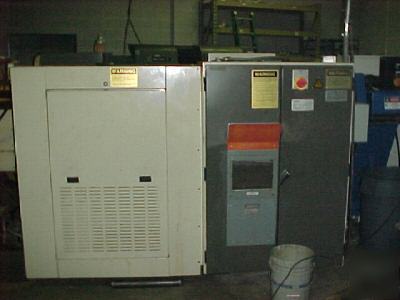

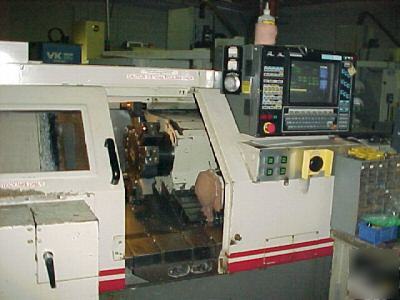

Cincinnati Avenger 200 MS CNC Lathe, Sub Spindle S/N:3650AMS94-0233 New: 1994 SPECIFICATIONS: Standard Chuck Size................210mm (8.27") Maximum Swing......................598mm (23.54") Maximum Machining Diameter.........268mm (10.55") Maximum Machining Length...........528.3mm (20.79") Headstock: Drive Motor AC......................22kW (29 HP Drive System.........................Direct Drive Main Spindle: Speed Range (1rpm increments).......30 - 5000 rpm Spindle Bore........................80mm (3.15") Spindle Nose........................A2-6 Thru Hole (draw tube actuator ID)...52mm (2.06") Round Bar Stock Capacity............51mm (2.00") Main Spindle, Contouring (C-Axis) Package: Programming Resolution................0.001 degree Contouring Speed Range................0-100 rpm Contouring Torque, 30 min.............230Nm (170 ftlbf) Carriage (Z-Axis) Travel (programmable)...............530mm (20.87") Axis Thrust...........5.5kN (1298 lb) continuous 17.8 kN (4069 lb)peak Rapid Rate..................24000mm/min (944 ipm) Cross Slide (X-Axis): Travel (programmable)...............180 mm(7.09") Range, Ref. OD Tool Tip...-46to34mm(-1.81to5.28") Axis Thrust...............3.0 kN (2327 lb) peak Rapid Rate................20000mm/min. (787 ipm) Sub-Spindle" Speed Range (1rpm increments).........24-5000 rpm ACC/DEC of Max Speed Range............1 sec Spindle Nose..........................A2-5 Standard Chuck Size.................165 mm (6.5") Integral Spindle/Motor..5.5 kW (7.4 hp)continuous W-Axis Spindle: Slide Travel (programmable)...550mm (21.65") W-Axis Rapid Rate..........20000 mm/min (787 ipm) W-Axis Feed Rate............2.54 - 10 160 mm/min(0.1 - 400 ipm) Max Speed For Workpiece Transfer, Synchronized....5000 rpm Sub-spindle Contouring (C-Axis) Package: Programming Resolution.............0.001 degree Contouring Speed Range.............0 - 100 rpm Contouring Torque, 30 min.....44.6 Nm (33 ftlbf) Rotating Tool Turret: Total Tool Stations................12 OD and/or ID Driven Tool Station Available Available (every other position)........6 Turret Index Time, one tool.............0.5 Tool Holder Type........................VDI # 40 Operating Speed Range...............40-4000 rpm Drill Size, Max Diameter............16mm (0.625") End Mill Size, Max Diameter..... .16mm (0.625") Tailstock: Quill Diameter.......................80mm (3.15") Quill Stroke........................130mm (5.12") Tailstock Center Taper............Morse Taper No.4 Programmable Tailstock Travel......416.5mm (16.4") Electrical Specifications: Voltage (+10%/-15%)..................208, 230, 460 Phase........................................3 Hertz........................................60 Coolant System: Distribution............Thru-the-Tool or External Type.......................................Flood Machine Dimensions (LxWxH)…………(103.6 x 68.1 x 69.1) Machine Weight…………………........5140 kg (11,300 lb)
(Cincin avenger 200MS cnc lathe '94 live, subspdl (4321) is the responsibility of Harriet Mcknight) |
harriet_mcknight@cedar--rapids.com (Harriet Mcknight) for more information.
