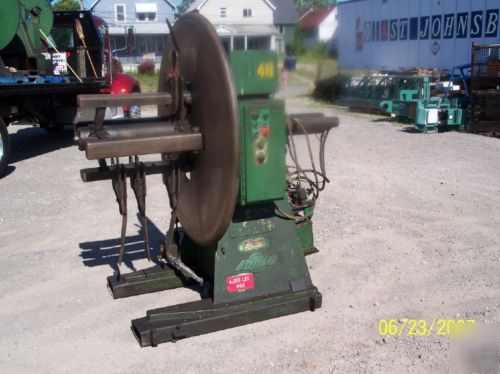

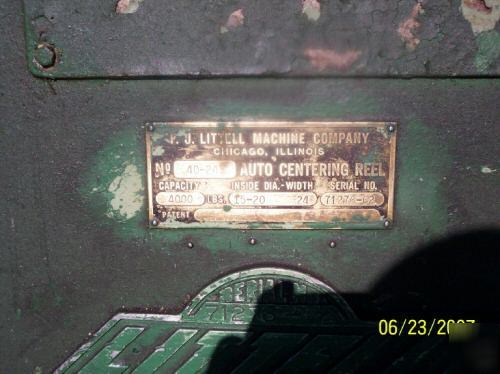

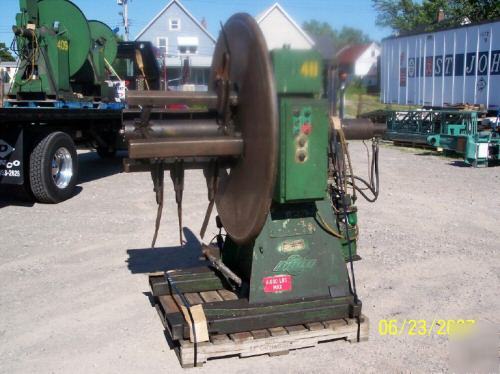

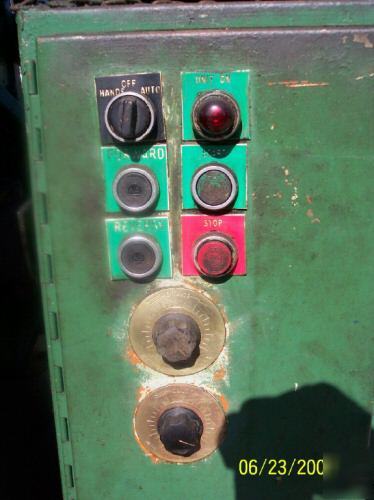

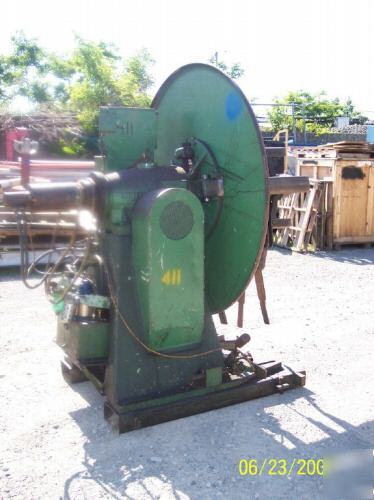

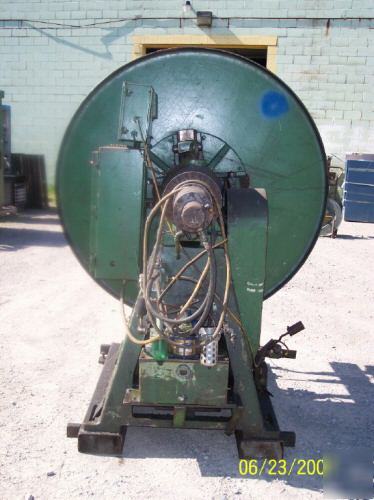

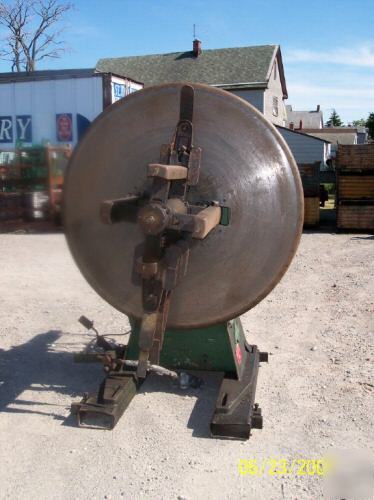

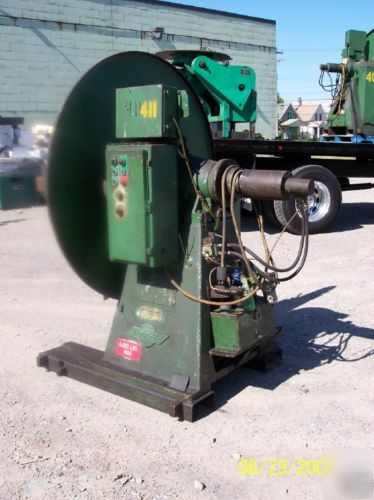

Littell Model 40-24 Coil Centering Reel 4000 Lbs. S/N: 71276-62 Coil Weight Capacity: 4000 Lbs. Pneumatic Expansion Range: 15"- 20 " HP 3 Hp. 230-460 Volts, 3 Phase, 60 Hz. Four Leaf Mandrel Motorized Payout: 3 HP, 230-460 Volts, 3 Phase, 60 Hz. Auto-Manual Start-Stop ( Start Light Lense ) Weight : Approx. 1200 Lbs. on skid as shown. Dimensions: 40" x 48" x 68" on skid. Note: Just replaced pneumatic air motor, as shown Just out of service on June 23, 2007, Unit runs great. Email Tim at jwhitley@cedar--rapids.com with any questions. (Littell model 40-24 coil centering reel 4000 lbs. is the responsibility of Jessie Whitley) |
jwhitley@cedar--rapids.com (Jessie Whitley)
for more information.
