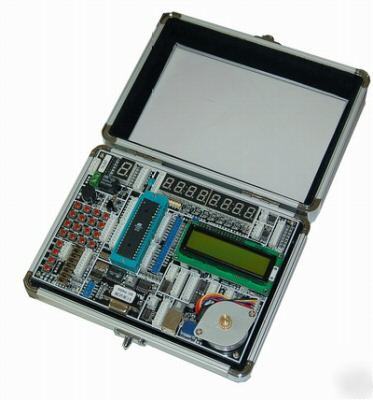

MCU / PIC / AVR Development Board w/ Programmer x600 * MCU / PIC / AVR DEVELOPMENT Board x600 ( No Aluminum Case ) * USB cable (For power use DC +5v) * RS232 Cable (For programmer) * 1602 LCD with Yellow backlight * CD-ROM (Programmer Driver , PDF manual , circuit , Sample code , MPLAB 7.50 , "Support Basic" etc.) Compatible for OS including Windows 98, Windows 2000/NT, Windows XP and Windows 2003 (Development board main desigN for 89xx MCU) On-board SupportFor Intel 8051 :AT89C51,AT89S51,AT89S52,AT89S53,AT89S8252,AT89LS51,AT89LS52,AT89LS53,AT89LS8252 For AVR: AT90S2323,AT90S2343 AT90S4433,AT90S8535 ATmega16,ATmega16L,ATmega161,ATmega161L,ATmega163,ATmega32,ATmega32L ATmega323,ATmega323L,ATmega64,ATmega64L ATmega8,ATmega8L,ATmega8515,ATmega8515L ATmega8535,ATmega8535L ATtiny12,ATtiny12L,ATtiny13,ATtiny13L ATtiny15,ATtiny15L,ATtiny22,ATtiny22L,ATtiny26,ATtiny26L For PIC Microchip: PIC16F870,PIC16F871,PIC16F872,PIC16F873,PIC16F874,PIC16F876,PIC16F877,PIC16F873A,PIC16F874A,PIC16F876A,PIC16F877A For AT24CXX: AT24C01,AT24C02,AT24C04,AT24C08,AT24C16,AT24C32,AT24C64,AT24C128,AT24C256,AT24C512 1. RS232 serial communication – to realize the communication between MCU board and computer. 4. 8-way independent key-press. 6. Series of ZIF experimental chip socket – 40PIN socket. 8. Read/write 24CXX series chips 9. Read/write EEPROM of 93CXX 10. DS18B20 digital temperature sensor – high accuracy and sensitivity. .(DS18B20 is not include - US$3.5 for each) 11. Infrared remote-control receiver – to practice infrared remote-control decoding and all kinds of infrared remote control. 12. Buzzer voice/PWM output experiment – to practice normal voice, music and PWM output sound. 13. On-board programming module – to communicate with computer through RS232, 14. On-board power module – power supply through USB. 15. 12864-character LCD–128*64 lattices. (128x64 character LCD is not include - US$18 for each) 16. 1602-character LCD–internal 5*7 lattices, to display 16*2-character. 17. 8x 7-segment digital tube – to realize dynamic or static display experiment of digital tube, to display clock,temperature or to make counter. 18. 1x 7-segment digital tube – Through 74LS47 and 4066B RS232 for PC to MCU board and Programmer port ULN2003A with 4066 to Step Motor ISP (In-system Programming) Port Infrared remote-control receiver (Mcu / pic / avr development board w/ programmer X600 is the responsibility of Neva Potts) |
