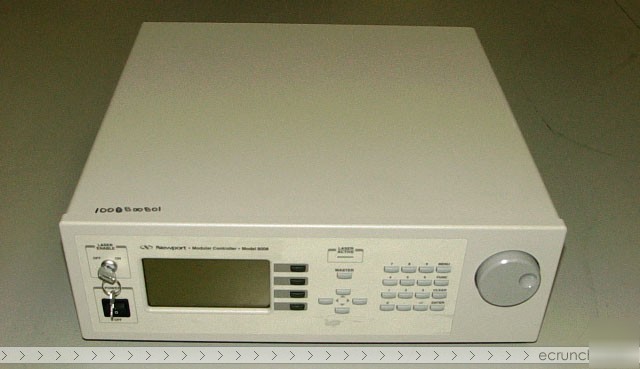

Information - Questions? Call (***)-253-6114 Ask for Chip or Trip The Model 8008 Modular Controller expands on the modular laser diode controller concept to meet the higher channel densities found in Dense WDM (DWDM) applications and 2-D VCSEL arrays. The eight bays accept either 8600C Combo Laser Diode Driver (LDD)/ Temperature Controller (TEC) modules or 8500D Dual Output LDD modules. 8600C Series Combo LDD/TEC modules are designed for use in communication applications and have an internal function generator for testing systems. The user only needs to program the frequency, Imax, and Imin to modulate the laser diode output. Both sinewave or squarewave (50% duty cycle) waveforms are available from 200 Hz–300 kHz. This range of frequencies meets today’s low frequency single-tone and high data rate test requirements for datacom and telecom. The mainframe automatically detects which module is installed in each bay and displays the system configuration on a large LCD screen. A sophisticated processor provides enhanced system control and data collection capabilities. GPIB/IEEE-488 and RS-232C interfaces are included with the Model 8008 for complete remote control and data collection. LabVIEW drivers are supplied with each 8008 mainframe. Automated testing and device evaluation are easily implemented using Newport’s extensive library of LabVIEW commands. This unit has the the following modules installed: * Seven (7) 8610.8C Combo LDD/TEC Module (1000 mA) * Output Current Range (mA): 0 – 1000 * Output Current Resolution (mA): 0.0153 * Compliance Voltage (V): 3 * For complete specifications on the modules, click here. This item is in excellent condition, working perfectly, and comes with a 14 Day Guarantee Against DOA. Our 14 Day Guarantee Against DOA (Dead On Arrival) does not guarantee compatibility. Cashier's Check, Company Check, Money Order, and Personal Check Bank Wire - Contact for Information Bank Wire - Contact for Information (New port 8008 modular controller w\ 7X 8610.8C ldd tec is the responsibility of Tessa Emerson) |
tessaemerson@cedar--rapids.com (Tessa Emerson) for more information.
