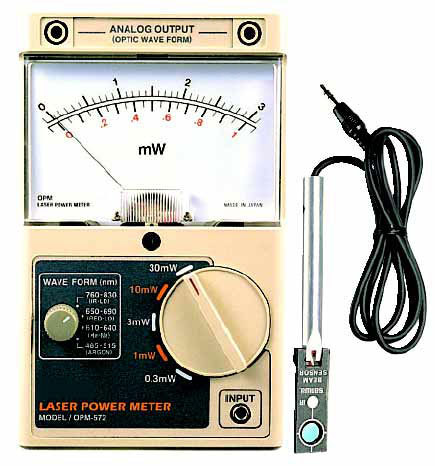

A portable Shockproof meter that provides a direct power read-out for a wide variety of lasers. An analog display enables laser calibration and adjustment. May also be connected to an analog recorder or an oscilloscope for optical waveform monitoring. Comes with a remote corded sensor that can be mounted for lab work and turns orange to confirm the presence of invisible (IR) laser beams. Also comes with output cables, instructions and a certificate of calibration all contained in a hard carrying case. No battery is required as the meter obtains power from the laser itself. Optical waveform monitoring: Max. 100kHz for oscilloscope Main body - 6.42(W)x3.94(H)x1.89(D)" (163x100x48mm) Photosensor head - 4.96(W)x.59(H)x.15(D)" (126x15x4mm) Cable length of sensor -approx. 35" (0.9 m) Sensor diameter - approx. .35" (9 mm) (Technika: analog laser power meter - OPM572 is the responsibility of Janette Owen) |
