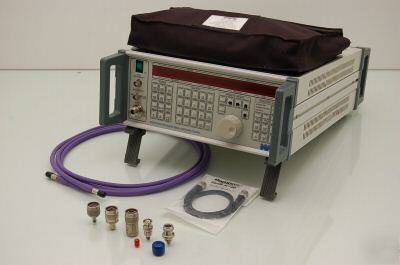

Click on picture for a larger image. Wayne Kerr Synthesized Signal Generator PSG2400L This Wayne Kerr Synthesized Signal Generator PSG2400L is in good refurbished condition. The case is in good shape, with only a couple of scratches and small dents on the top vent of the unit. All four carry handles of this unit are in good, strong shape. The four feet of this unit, as well as the two fold out feet, have their rubber inserts, and support the unit steadily. The case has all screws in place. The rear heat sink is in good condition, and all labels and placards are intact and easily readable. The GPIB, RF, and BNC outputs are in good, clean shape. The power switch clicks audibly and has a smooth action. The frequency knob rotates freely and precisely. The push buttons on the front panel are in good working order. The display is bright and legible. The unit is also designated SG-1207A/U by the U.S. Army. The PSG2400L is a compact sized, beautifully constructed unit with exceptional mil. spec. performance from 100Khz - 2Ghz. It has 2.4Ghz capability with slightly relaxed specs. The unit is in perfect working condition. The pictures of the unit being tested are strictly representative of the tests we performed on ALL UNITS, and the pictured unit is not the unit for sale. ALL UNITS passed ALL TESTS. This Wayne Kerr PSG2400L is shown with it's power output being metered by a HP EPM 441A Power Meter (E4418A). The unit is also shown having it's output frequency metered by a HP 8562A Spectrum Analyzer. Next, we hooked up an Agilent 53132A Frequency Counter and metered the unit's output at 100MHz and again at 1GHz, with good results. Lastly, we checked the AM Modulation of the unit with a Wayne Kerr AMM20002Q. All units for sale passed a 28-point checklist run from the General Support Maintenance Manual for the SG-1207A/U (TM43-6625-911-14&P) from the Department of the Army. Here are some specs on the unit - * Frequency: 100 kHz to 2 GHz (Over-range to 2.4 GHz with slightly relaxed specifications) * Resolution: 10 Hz or better to 1.2 GHz. 20 Hz above * Output: +13 dBm (Over-range to +16 dBm) * Output Resolution: 0.05 dB, down to -100 dBm. 0.1 dBm to -143 dBm (0.016 µV) * Comprehensive modulation functions on AM/FM/~M * Pulse modulation with 25 ns rise/fall times * SSB phase noise specification: -110 dBm @ 1khz * Reverse Power Protection: 25 W * Unit can be unlocked via the front keypad to increase frequency range to 2.4 GHz. The included accessories are - * The Wayne Kerr accessories Velcro backpack for the PSG2400L * The TM43-6625-911-14&P General Support Maintenance Manual * The Farnell Wayne Kerr Instruction and Service Manual on CD. (Not pictured) * The AMCOM-TMDE Interactive Multimedia Instruction SG-1207 Operators Course on CD. * A new Pomona 2249-K-48 BNC to BNC Coaxial Cable * A GORE-TEX Semi-Rigid 18GHz -DC internally armored, plastic shielded microwave cable * A female RF to RSA adapter * A female RF to BNC adapter * A female RF terminator adapter - 401-1F3 Thanks for looking and let us know if you have any questions about the item, we will do our best to answer. The unit is sold tested and is guaranteed NON-DOA with a 7 day ROR and a 30 day warranty. CO STATE RESIDENTS: All items won by Colorado residents will be subject to 6.7% sales tax. (Wayne kerr synthesized signal generator PSG2400L 2.4GHZ is the responsibility of Concetta Cantrell) |
Concetta.cantrell@cedar--rapids.com (Concetta Cantrell) for more information.
