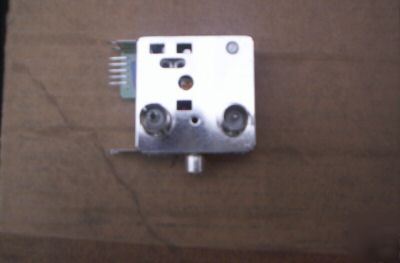

Description: Super Compact RF Modulators For VCR Datasheet : download File size : 971 kB Super compact RF Modulators for VCR T V/ V CR Tuners, RF Modulators MDF33 series are RF modulator integrated with a RF switch or RF booster and functionally designed in consideration of VCR design. MDF33 series is applicable to 4 standard broadcast systems for NTSC specification, PAL specification and SECAM specification. 1. Super compact. 2. ANT IN and T V OUT terminals are available for VCR panel terminals. 3. Can be directly mounted on P. C. board. 4. High performance. Specifications Item Supply Voltage Switching Voltage V.S.W.R. Insertion Loss Isolation MDF33-VJ120A Japan MDF33-VA340A America 5V ANT IN TV OUT : 0V, MOD IN TV OUT : 5V 3 max. (90~770MHz) 3 max. (54~890MHz) 7dB max. (90~770MHz) 7dB max. (54~890MHz) 62dB min. (90~102MHz) 62dB min. (54~66MHz) Specifications Item Supply Voltage Current Consumption V.S.W.R. Gain T V OUT, ANT IN V TR OUT) MDF33-UE360A Germany MDF33-UB360A United Kingdom 5V 90mA max. (70mA typ.) 3 max. 3±3dB Super compact RF Modulators for VCR Item Supply Voltage Current Consumption Video Carrier Frequency Video Carrier Output Video Percent Modulation Audio Sub-Carrier Frequency Audio FM Deviation Video to Audio Level Ratio Video Carrier Frequency* Drift vs.Ambient Temperature Audio Sub-Carrier Frequency* Drift vs. Ambient Temperature Specifications MDF33-VA340A MDF33-UE360A MDF33-UB360A 5V 30mA max. (15mA typ.) 50mA max. (35mA typ.) 91.250±0.140MHz 61.250±0.140MHz Variable between 543.250 to 615.250MHz, 97.250±0.140MHz 67.250±0.140MHz centered at 591.250±0.500MHz 66±3dBµ 72±3dBµ 80±5% 75±8% 4.500±0.005MHz 5.500±0.005MHz 6.000±0.005MHz 35±7kHz 50±10kHz 16±3dB MDF33-VJ120A - ±0.015MHz ±0.550MHz *Specifications may be changed without notice. Unit : mm, General tolerance : ±0.5 TERMINALS 1. VIDEO IN 2. AUDIO IN 3. MOD+B 4. NC 5. BST+B Check out my other items!Be sure to add me to your favourites list!CRYPTIENSIS 2004 ELECTRONIC SURPLUS (Mitsumi MDF33-UD380G rf converter booster is the responsibility of Chasity Mendez) |
