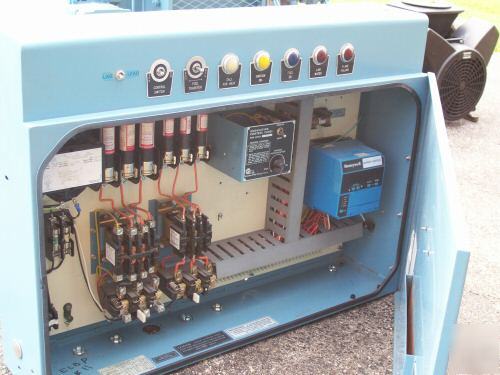

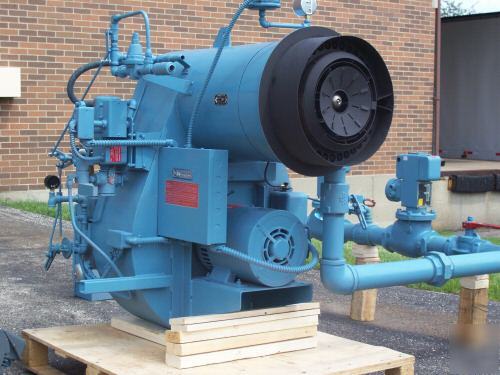

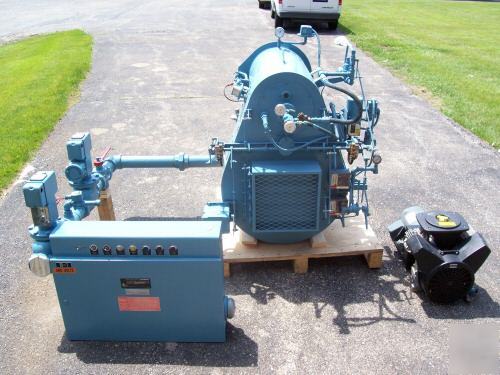

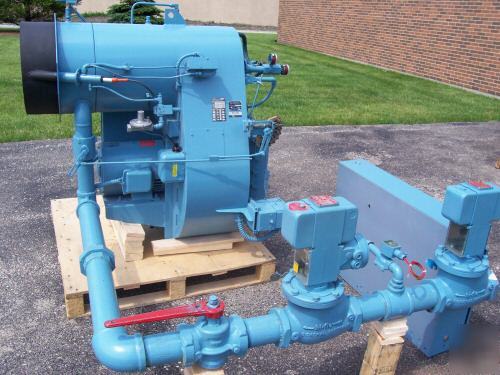

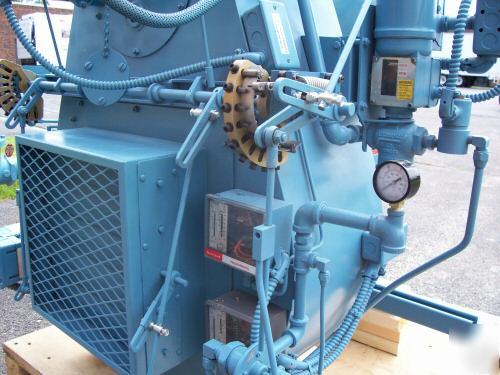

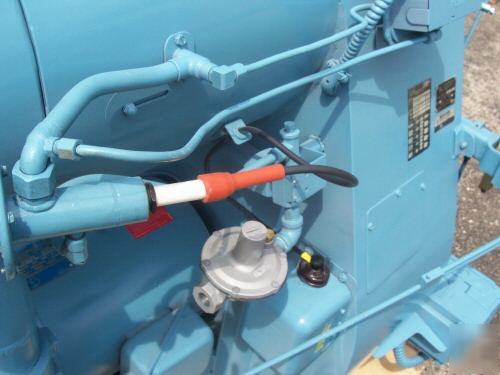

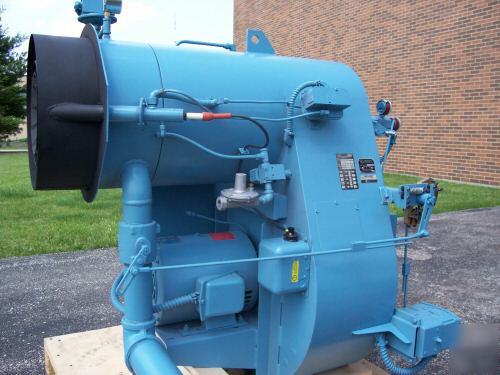

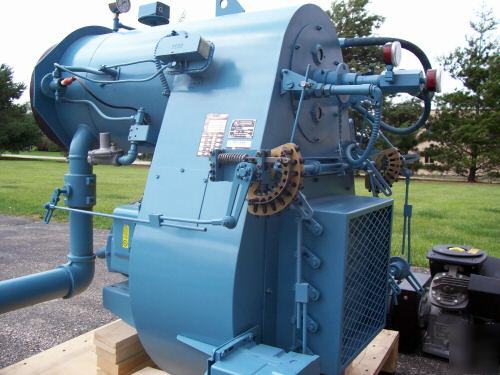

In addition to all standard equipment, burner will be furnished with , Remote Cabinet. And IRI Full gas train. Pre-piped dual motorized gas valves with main gas regulator, a high gas pressure switch with a 0-35" w.c. gas gauge and test cock will be mounted and wired downstream of gas butterfly valve. Burner will be furnished with Gordon Piat free-standing U.L. approved control panel , containing the HoneyWell RM7800 series flame monitoring system with optional display module.(keeps a record of history in the event of a failure or to use as a tool to monitor cycling usage). 5 KVA control circuit transformer, manual/auto firing rate positioning switch, manual on-off control switch, control power fuses, six signal lites providing "power on", "call for heat", "ignition", "main fuel", "low water", and "flame failure" signals, Blower/Air comperssor motor starters, combustion air damper relay, remote alarm relay, 4" alarm bell with silencing switch. Natural Gas max rating 16800 11.2 INWC min rating 5600 1.2 INWC. Voltage: 480/60/3 Controls 120vac. Gas pressure range: 1# to 10# required at the inlet of gas train. note.we also have other large and small used burners in stock as well as a variety of boilers. All your boiler room needs can be satisfied at our Well stocked location. Please call for any questions you have for used or new equipment!!! (***)-253-1040 Not sure if it will work with what you have? NO PROBLEM!!! We can also have a customized burner to boiler refractory adapter plate fabricated to meet your application? Makes installing quick and easy! . Have all of your information of your boiler/burner etc.. make , model , serial # before you call. NOTE.. AIR COMPRESSOR AND DOG ARE NOT INCLUDED, YOU CAN USE HOUSE AIR OR ADD COMPRESSOR WE CAN HELP YOU . This is the second of a matched pair we had. FIrst is gone thankyou. Dont wait or this one will be gone too. This is the pic of the first burner, however the one that is being sold is exactly same from same site. (Gordon piatt F16 burner gas oil,boiler,steam,hot water is the responsibility of Glen Cain) |
Glen_Cain@cedar--rapids.com (Glen Cain) for more information.
