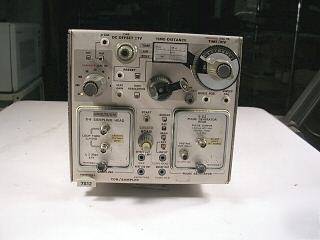

The 7S12 TDR/Sampler Plug-in has vertical scales calibrated in mp (reflection coefficient 0.001) and mV from 2 to 500 units/div in 8 steps. The unit has a tape dial of 4900 ft, 490 ft, 49 ft (air dielectric); 3200 ft, 320 ft, 32 ft (polyethylene dielectric); and 10, 1, and 0.1 µs (time). The unit also provides time/division settings of 20 ps to 1 µs in 1-2-5 sequence. The S6 Sampling Head is a 50-ohm feed-through unit for high-speed applications. The unit features: 30 ps rise time Displayed noise: <5 mV Loop-through input Bandwidth equivalent to DC to 11.5GHz at 3 The Tektronix S52 is a Pulse Generator for use with 7S series plug-in units. Features 25 pS rise time, 200 mV amplitude, and pretrigger output. THE UNIT IS IN NICE SHAPE AND WE OFFER A DOMESTIC DOA WARRENTY FOR THE SET. LET US KNOW IF YOU HAVE ANY QUESTIONS. THANKS FOR LOOKING. (Tektronix 7S12 with S6 sampling head & S52 pulse gen is the responsibility of Elnora Lane) |
