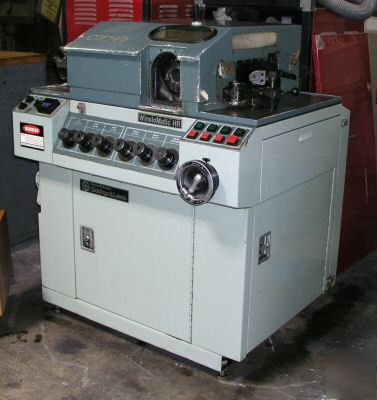

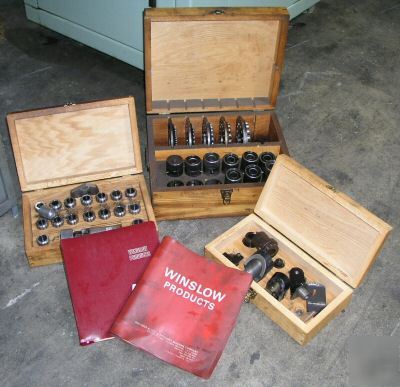

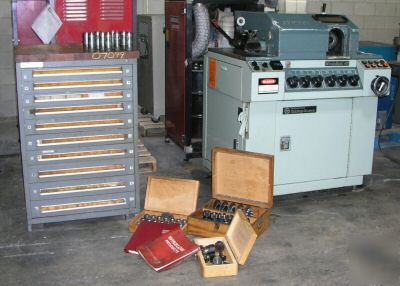

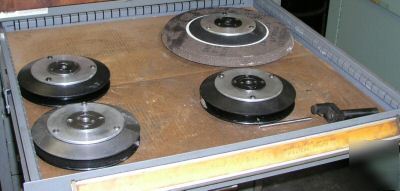

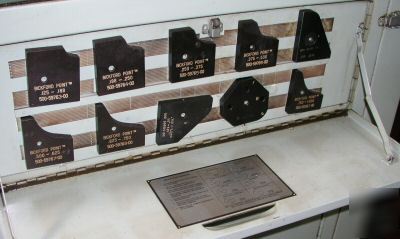

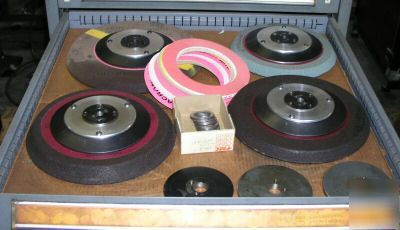

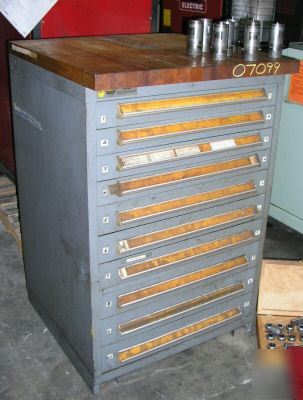

GIDDINGS & LEWIS WINSLOMATIC HR DRILL GRINDER Serial # 947-00110-84 New 1984 Model: WinsloMatic HR Conventional Point: .0625" to 1" Diameter Helical: .0625" to 1" Diameter Bickford: .125" to 1" Diameter Includes Fraction, Number and Letter Size Drills Included Point Angle is from 90 to 140 Degrees Grinding Wheel Size: 12" x 3/4" x 5" Hole Accessory Kit for Split Point and Web Thinning: 1/16" to 1/2" Capacity Accessory Kit for Step Drills and Center Drills (90 Degree Cam) Full Set of Index Bushing Plates (6) Total Additional Grinding Wheel Hubs 10-Drawer Vidmar Style Tool Cabinet Wired for 3 Phase, 60 Cycle, 460 Volts Grinder: 46" L-R x 43" F-B x 57" H x 2,000 Lbs. Cabinet: 30" L-R x 30" F-B x 46" H (Giddings & lewis winslomatic hr drill grinder is the responsibility of Ricky Grimes) |
