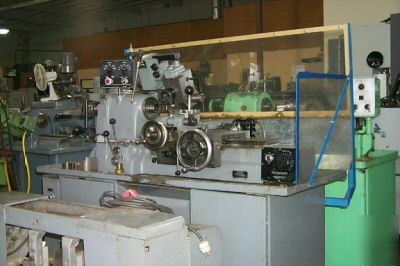

Hardinge HC Chucker 1979 Threading attachment Category: Lathes Manual Sub Category: Manual Stock No. 2758 Age: 1979 Serial #: HC 5212-T Location: Fullerton, CA Spindle Construction Hrdg Preloaded ball bearing Round 5C Hardinge Collets 1-/1/16" Hexagon 5C Hardinge Collets 7/8" Square 5C Hardinge Collets 3/4" Jaw Chucks (through spindle) 1-5/32" Spindle Nose Thread 2-3/16" - 10 R.H. Maximum Diameter For Threading 6" External, 5" Internal Maximum Length for Threading 1-3/4" Maximum Distance from Face of Turret to Spindle 13" Cross Slide Power Feed Range 1/4" to 10" per min Spindle Speeds 3 Selector Variable Speed Mach Dimensions 72" L-R x 28" F-B x 64" H Electrics 220 Volts, 3 PH, 60 CYC Coolant, Lever Actuated 5C Collet Closer, Single Point Manual Threading.Power Carriage Feed (Hardinge hc chucker 1979, selector spindle speeds is the responsibility of Alfred Little) |
Alfred_Little@cedar--rapids.com (Alfred Little) for more information.
