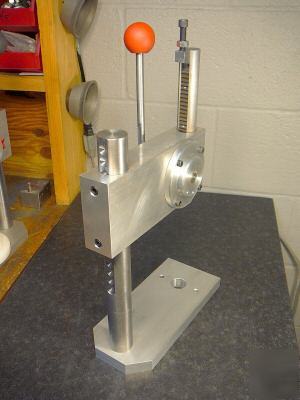

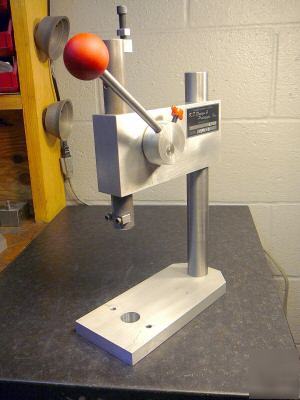

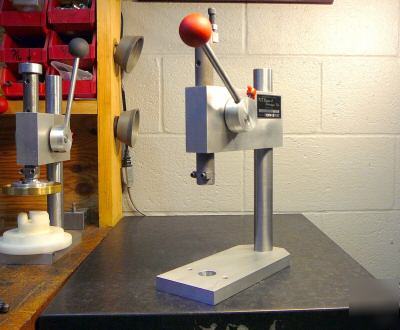

For the past 18 years, K.T. Design has been designing and building custom machinery and tools. Through these years, we have had many press and press tooling applications. As a result of these experiences, our assembly press has been designed with adjustability for ergonomic concerns, a long stroke for clearance and a deep throat for tooling. Our Light Duty Assembly Press Specifications are as follows: * Ideal for light assembly and modification of products * Press rating 100 lbs., 4 to 1 Mechanical Advantage (25 lbs. pull on handle = 100 lbs. at ram) * 1" diameter center steel ram and 1/2" precision tooling hole with split collar clamp design * Ram Stroke 3 1/2" Max. (in 170 degree handle rotation) with full precision adjustment * Ram centerline to column distance is 5 3/8" * Ram to base plate open height 3 1/2" min. to 7 1/2" max. with precision adjustment in 1/2" increments * Press Handle adjusts from 5" to 7" with rotation adjustment in 60 degree increments * Torsion spring provides auto-retraction of press ram; Can be adjusted for balance with moderate tooling loads * Aluminum base plate provides tool mounting as follows: 1" reamed center hole, two 5/16-18 threaded holes, 1.250 off-center; These same 5/16-18 holes are counter-bored from back side for 1/4" socket head capscrews * All moving components ride in bronze bearings * Overall dimensions: 18" H x 4" W x 9" D (Not including handle knob) Quotes on custom tooling for your press applications are available upon request! Custom specifications of presses available will quotes upon request! (Light duty assembly press is the responsibility of Delia Blackburn) |
D-Blackburn@cedar--rapids.com (Delia Blackburn) for more information.
