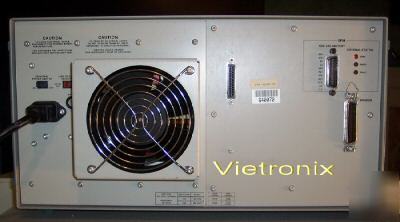

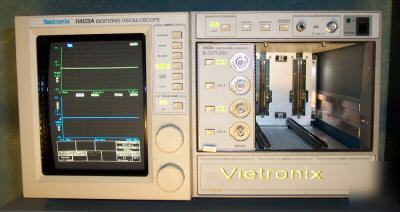

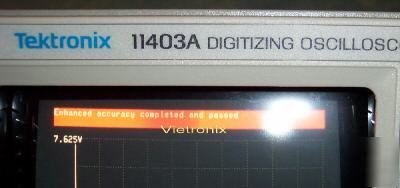

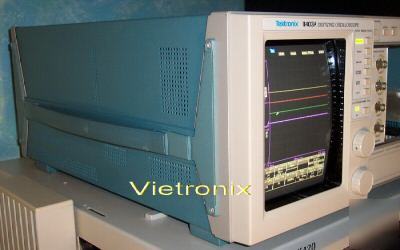

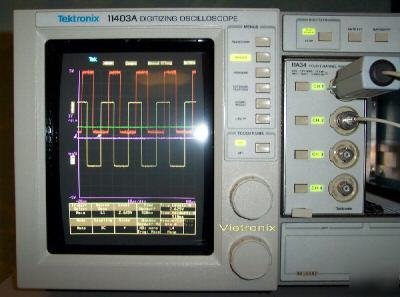

Our office is located at: Contact hours by phone: Trust! Excellent! 3146 Millbrook Dr. Mon - Fri 4:00pm - 10:00pm PST Quality! San Jose Ca 95148 Sat - Sun 9:00am - 9:00pm PST Unit Included: 11A34 Plug-in module. Condition: Excellent physical condition. Unit is working and tested. 7 days full warranty. Please see Term and Condition for more detail. Descriptions and features: 11403A Digitizing Oscilloscopes provide unprecedented capabilities in capturing and accurately measuring high speed electrical events. Some of the main features of this oscilloscope. * Fast rise time and bandwidth, depending on the plug-in amplifier you use. * Sweep speeds from 10ps per division to 100 seconds per division, adjustable in a calibrated 1-2-5 sequence. * 20Ms/s sampling rate for high system throughput and real-time display. * Simultaneous display of up to eight waveforms. * A bright, stable display even with signals of low repetition rate. * Waveforms are captured with 1-bit vertical resolution, and can have from 512 to 10,240 points each. * Time or voltage histograms displayed on-screen and updated continuously as trace data are collected. * Automatic measurement capability that allows a wide variety of complex measurements on a signal and gives real time updating. * An Autoset function that allows quick adjustment of settings by pressing a single button. * Menu driven touch-screen operation that simplifies operator control of the oscilloscope. * Programmable control of the oscilloscope that allows you to operate it from an attached computer or instrument controller via the RS-232 or GPIB interfaces. * Enhanced Accuracy system that ensures accurate, stable waveform data and measurement results. 7 Days Full Warranty: The items are 7 days warranty unless specified in description. DOA: Guarantee against Dead On Arrival. Canada + Alaska + Hawaii fixed rate: $70.00 US Dollars. United Kingdom + Sweden fixed rate: $176.00 US Dollars. Belgium + France + Germany + Spain + Italy + Switzerland + Netherlands fixed rate: $171.00 US Dollars. Wire and bank transfers please email me for more information. (Tektronix 11403A 3GHZ digital oscillopscope + 11A34 is the responsibility of Gayle Potter) |
Gpotter@cedar--rapids.com (Gayle Potter) for more information.
