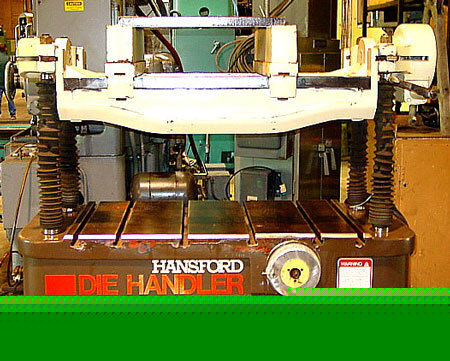

Used Machinery and Machine ToolsUsed MachineryUsed Machine ToolsThousands of Used Metalworking and Plastic Machines & New Machine Tools Photos, Full Descriptions and Prices - Fast & Easy * Manual Lathes, Mills, Drills, Saws * Grinders, Hones, Finishing * Ovens, Furnaces & Environmental 3000Lb DIE FLIPPER, Hansford 1020 3000Lb DIE FLIPPER, Hansford 1020 3,000 LB. HANSFORD MODEL #1020 DIE FLIPPER CAPACITY ................................... 3,000 LBS. SHUT HEIGHT (MIN. DISTANCE BETWEEN PLATENS). 8" OPEN HEIGHT (MAX. DISTANCE BETWEEN PLATENS). 28" PLATEN AREA (LOWER)......................... 24" X 44-1/2"L (UPPER).ADJUSTABLE MTG. PLATES LOCKING POSITION OF UPPER PLATEN ........... 0 & 180 DEGREES MAXIMUM DIE TRY-OUT FORCE .................. 20 TONS (LOWER) 6 T-SLOTS 24" LONG, FOR 3/4" BOLTS (UPPER) 4 T-SLOTS 8-1/2" LONG, FOR 3/4" BOLTS VERTICAL TRAVEL ................ 20" VERTICAL MOVEMENT (BY HAND CRANK) MANUAL POSITION ................ 48 TURNS/INCH TRY-OUT POSITION ............... 384 TURNS/INCH VERITICAL MOVEMENT (POWER).................. 13"/MIN. ROTATION OF TOP PLATEN .............. 48 TURNS/360 DEGREES MOTOR - 1.5 HP, 220/440 VOLTS, 3 PH, 60 CYCLE, 1750 RPM CONTROL - FURNISHED WITH MAGNETIC STARTER W/110V AT THE Machine Location: HARRISON, NJ Click Here For More Hansford Machines Click Here For More Plastic Machinery - DIE HANDLERS / DIE FLIPPERS(s) Click Here For More Press Feeds, Straighteners, etc. - DIE HANDLERS / DIE FLIPPERS(s) Click Here For More Presses & Pressroom - DIE HANDLERS / DIE FLIPPERS(s) Call Rick at (***) 873-6224 ext 7560 Call Alex at (***) 873-6224 ext 7613 Finance This Equipment For Your Business - Click Here Finance Equipment For Your Business - Click Here * Machinery Values is one of the world's largest machinery dealers, in business since 1971. * New machines are covered under their own warrantees. Details of each warranty can be found within the quotation for all new machines. * Most items in our store are located in our warehouse in Harrison, New Jersey - about 9 miles from New York City. You may inspect any item prior to purchase, under power in most cases, simply by calling and arranging an inspection. There is no charge for this. (3000LB die flipper, hansford 1020 is the responsibility of Max Koch) |
Max-Koch@cedar--rapids.com (Max Koch) for more information.
