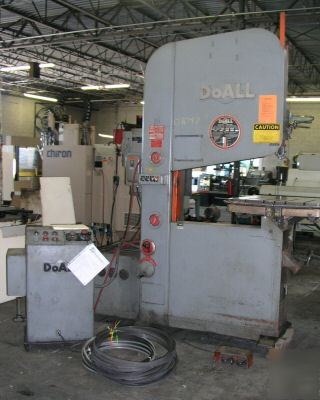

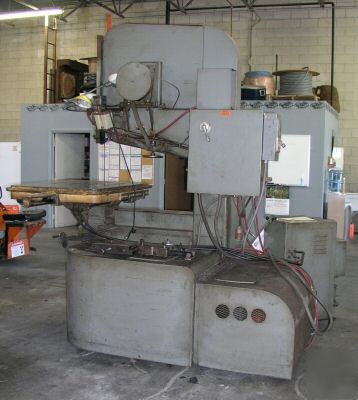

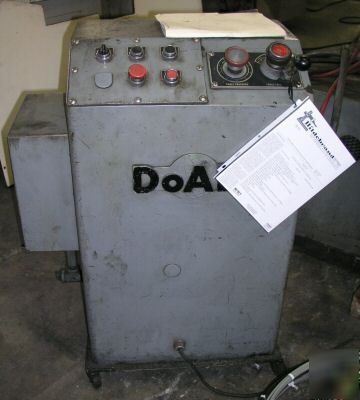

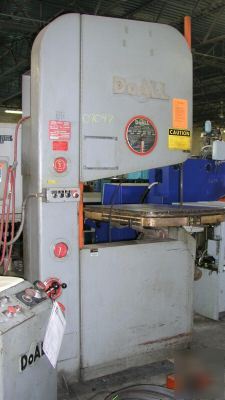

36" DOALL ZEPHYR VERTICAL BAND SAW Serial # 266-79244 New 1979 Model # ZW-3614-1H3 Maximum Height Under Blade Guide: 14" Maximum Height Under Blade Tension Wheel: 9" Table Size: 32" L-R x 41" F-B with (4) T-Slots Running F-B Coolant Trough Running Around the Table: 1" Wide Floor Line to Table Top: 47-1/2" Table Tilt: 45 Degrees Right & 10 Degrees Left Blade Speeds: 70 to 15,000 FPM Via High/Med/Low Gear Range Manual Blade Tension with Indicator Gage that Reads to 1-1/2" Blades Stand Alone Control for Hydraulic System with Foot Pedal Control 10 HP Main Motor, Wired 3 Phase, 60 Cycle, 460 Volts Only Machine: 93" L-R x 56" F-B x 108" H Control: 28" L-R x 16" F-B x 39" H (36" doall zephyr vertical band saw is the responsibility of Billie Willis) |
B_willis@cedar--rapids.com (Billie Willis) for more information.
