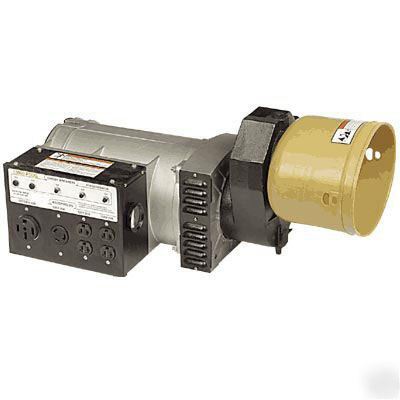

13 kW (13,000 Watts) Output - Heavy Duty all Steel Housing * Heavy Duty 13,000 Watt PTO Driven Generator * This powerful Generator packs 13 kW (13,000 Watts) * Heavy duty single-phase engine generates 100 Amps @ 120V and 50 Amps @ 240V simultaneously * Industry standard 1-3/8", 6-spline input shaft (Category I) * Requires 24 PTO Hp engine minimum at 540 RPM * 100 Amp thermal magnetic breaker and plastic shield * Outlets include welding receptacle and four 120V 20 Amp receptacles and voltmeter * Pushbutton reset circuit breakers * Required Engine: 24 PTO Hp (540 RPM) or more * Rated Watts: 12 kW (12,000 Watts) Continuous Watts * Surge Watts: 13 kW (13,000 Watts) Surge Watts * Four 20 Amp 120V receptacles * One 30 Amp 120V receptacle * One 50 Amp 120/240V straight blade receptacle * Uses NEMA 5-20R, NEMA L5-30R and NEMA 14-50R straight blade * 100 Amps @ 120V and 50 Amps @ 240V simultaneously * Oil level indicator, cast iron with sight glass gearbox * Brushless design, less than 6% Total Harmonic Distortion * Thermal overload protection * Conveniently located control panel * Push button circuit breakers * PTO shield protects operator from moving parts * Overall Dimensions: 35.5" L x 22" W x 17" H * 2 Year Parts & Service Manufacturer's Warranty (Generator - pto powered - 13 kw - 2 year warranty is the responsibility of Althea Sellers) |
asellers@cedar--rapids.com (Althea Sellers) for more information.
