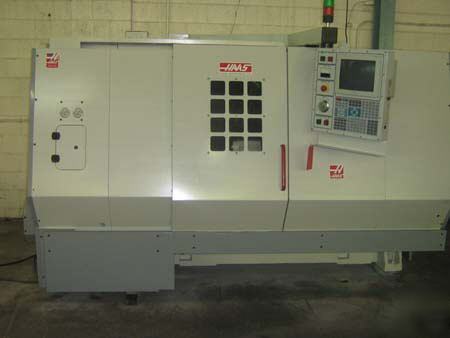

SWING OVER FRONT APRON..................24" SWING OVER CROSS SLIDE..................9.5" CHUCK SIZE..............................10" BAR CAPACITY............................2.5" DISTANCE BETWEEN CENTERS................39" MAXIMUM CUTTING DIAMETER................14.5" MAXIMUM CUTTING LENGTH..................34" SPINDLE SPEED (GEARBOX).................3400 RPM SPINDLE MOTOR...........................30 HP SPINDLE NOSE............................A2-6 SPINDLE BORE............................3" X-AXIS TRAVEL...........................11.30" Z-AXIS TRAVEL...........................34" RAPID TRAVERSE (AC BRUSHLESS)...........710 IPM TAILSTOCK TAPER.........................MT 4 TAILSTOCK TRAVEL........................33.5" NUMBER OF TURRET STATIONS...............12 APPROXIMATE WEIGHT......................14,000 LBS (Haas hl-4 cnc turning center is the responsibility of Selma Collier) |
selma_collier@cedar--rapids.com (Selma Collier) for more information.
