Hp 3746A 32 mhz selective level measuring set.


Hp 3746A 32 mhz selective level measuring set.

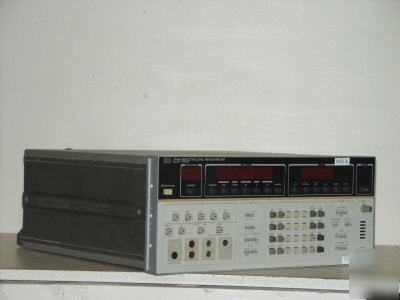

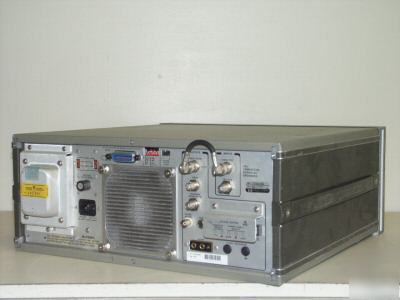

HP 3746A 32 MHz Selective Level Measuring Set.
This SLMS is Basically a Tunable Reciver, Employing a Synthesized Local Oscillator, Controlled by a Processor. A Keyboard Provides the Interface Between the Operator and the Processor.
The HP 3746A Measures Signal Power up to 32 MHz.
Measured Levels are True RMS Values Derived From Thermopile Sensors. Autoranging Attenuators and Amplifiers Limit the Range of Signal Levels Applied to These Sensors.
The Instrument Displays Power Levels Either in dBm, or in dB's Relative to a dBm Reference Level. Automatic Correction Ensures That Whichever Input is Selected the Display Will be Correct for the Chosen Terminationg Impedance.
A Processor Provides Overall Control Within the Instrument, Implementing Routines Which Govern the Measurement Functions of the Instrument and Calculating from the Various Autoranging and Sensor Settings the Levels to be Displayed. The Processor Also Determines the Frequency and Bandwidth Setting Required When FDM Descriptions are Entered.
All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor.
