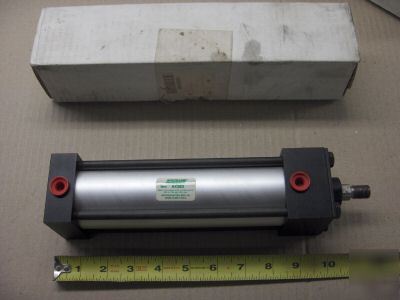

Air Cylinder,2 In Bore,6 In Stroke Air Cylinder, Double Acting, Large Bore Tie Rod, Bore Dia 2 In, Stroke 6 In, Max Pressure 250 PSI, Mounting Style Side Tapped/Sleeve Nut, Cushion Type None, Cylinder Ports 1/4 NPT In, Operating Temp Range -20 to 200 F, Total Length 11.375 In, Max Load 785 Lb, Black and Silver Finish, Rod Dia 5/8 In, Rod Thread 1/2-20 In, Rod Thread Length 3/4 In, Meets JIC, NFPA * Large Bore Aluminum and Steel NFPA Air Cylinders * Hard chrome-plated piston rod with sintered iron bearings. Buna N piston seals and urethane rod seals provide low friction, positive sealing, and long life. * Temp. range: -20 Degree to -200 DegreeF * Cylinders meet JIC and NFPA standards * 400 psi (nonshock) Hydraulic * Heads and caps are precision machined from lightweight aircraft aluminum. * Tube O.D. is clear anodized and I.D. is hard-coated for a file hard, noncorrosive surface. Features a magnetic piston for use with position sensing switches which mount on the cylinder tie rod. Silver and black anodized finish. (Speedaire air cylinder model 6X383 2" bore x 6" stroke is the responsibility of Bertie Suarez) |
B-suarez@cedar--rapids.com (Bertie Suarez) for more information.
