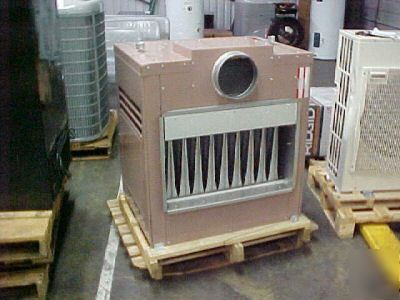

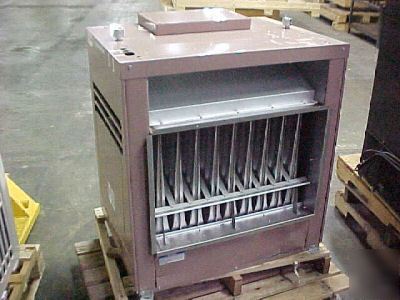

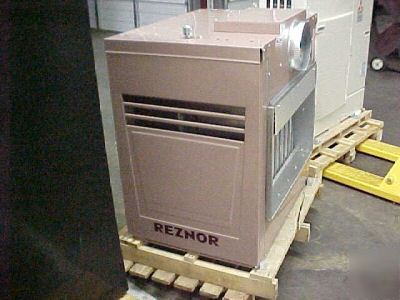

This unit is brand new, made in October 2007. There is a very minor dent on the rear base panel, and the unit is missing two louvers, which will be inexpensive and readily available. I will add replacent information soon. For Commercial / Industrial use only. C.wyatt@cedar--rapids.com, (***)-475-0676 Model number X225E-8, 225 MBH Serial number BGJ66Q2NO5415 Natural Gas. 115 Volt. Made in October 2007 For more complete information, see the manufacturer's web page : http:// /catalog-x.html Reznor® X series duct furnaces are designed to provide 80% thermal efficiency for indoor application with gravity venting. They are certified for use with natural or propane gas, as specified, in sizes from 75,000 through 400,000 BTUH input. These models are used as heating components in heating, heating/cooling or makeup air systems and require a separate blower system for air delivery. The furnace has a Reznor® Thermocore® aluminized steel heat exchanger with venturi-design tubes. The die-formed burners are of aluminized steel and include flared ports with a stainless steel insert. The model X furnace is approved for a temperature rise range of 50°F to 90°F and includes "finger-baffles" for proper air distribution at these lower air volumes. Standard features include a manual match-lit pilot and a single-stage, 24-volt gas valve. Model X/HX units are wired for field connection to a remote 24-volt thermostat for automatic operation. Each unit is provided with all required limit and safety controls, including an energy cutoff (ECO) and a blocked vent shut-off system. Size 225 MBH Efficiency 80% Input BTU 225 Output BTU 180 # Fans 0 Fan Size n/a Min CFM 1840 Max CFM 3315 Model X 225E-8 Weight 231 lbs Length 28 inches Width 33 inches Height 35-1/4 inches Duct Size 8" Rd ( reznor commercial duct furnace, natural gas is the responsibility of Chris Wyatt) |
C.wyatt@cedar--rapids.com (Chris Wyatt) for more information.
