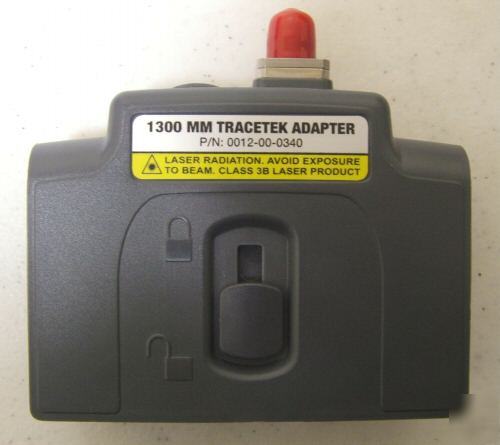

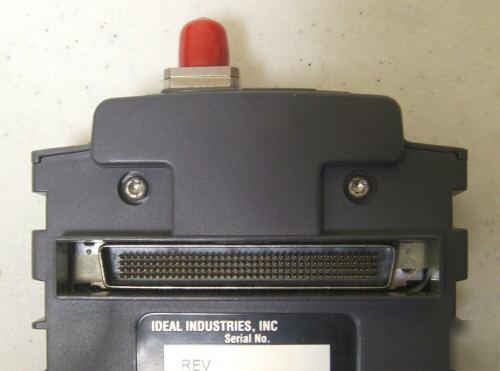

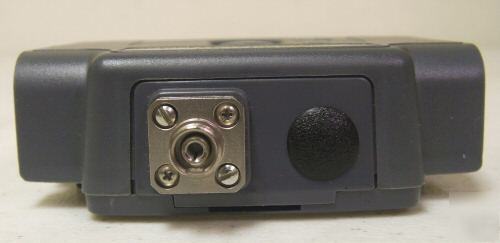

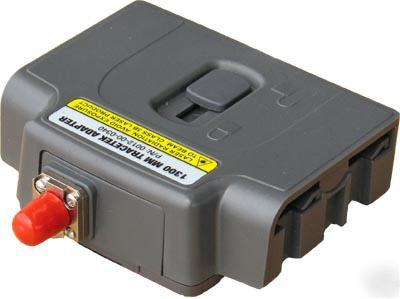

Ideal Industries 1300 MM TRACETEKMM Fiber Optic Module for LANTEK 6 and LANTEK 7 Cable Certifier Presents graphical information of fiber under test-similar to an expensive OTDR Included Accessories Listed at the Bottom. Be sure to add us to your Favorites list!. Warranty: 30 Day Exchange Warranty * Provides an easy to use troubleshooting capability for Multimode fiber optic cables * Illustrates distance-to-fault by providing magnitude and distance of reflective events * Presents graphical information of fiber under test-similar to an expensive OTDR * Measures total fiber length without remote handset of second operator * Available in the Premium packages of FIBERTEK or as a stand-alone option for any LANTEK 6 or 7 Cable Certifiers * Requires only one LAN cable certifier for copper and fiber testing and troubleshooting With TRACETEK™, the LANTEK® series ofcable certifiers can now troubleshoot fiber optic installations. TRACETEK works by injecting pulsed laser light into one end of the fiber and measuring the amount of light that is reflected back from events along the fiber cable. These reflections are then processed and plotted on the LANTEK 1/4 VGA color display. Events, like connectors, show up as spikes on the display. A bad splice will result in more light being reflected back, thus generating a bigger spike. The amplitude of the spike gives an indication of optical return loss, thus identifying the trouble spot. While using TRACETEK, a cursor can scroll along the trace to provide a reading of distance to the event. TRACETEK can graphically display and store fiber traces. LANTEK Reporter Software provides file management, report generation, and printing of all test results. TRACETEK is the only fiber accessory for a LAN cable certifier that will trace a fiber run, provide distance-tofault along the fiber and display the relative magnitude of the event. When used together, TRACETEK and FIBERTEK Adapters provide LANTEK series of cable certifiers a unique combination of fiber measurement, documentation and trouble shooting capabilities. It is a cost effective fiber certification solution to meet the requirements of the proposed TIA TSB-140. * Center Wavelength: 1300 nm * Minimum Reflection for Event Detection: -40 dB * High Resolution: 800 meters * Medium Resolution: 850 meters * Low Resolution: 4000 meters * Distance Accuracy: (+/-3%) + 1 meter * Event Spatial Resolution: 2 meters - High Resolution, 8 meters - Medium and Low Resolution * Display Resolution: 0.01 meter * MM Power Output: 40mW, (+16.5 dBm) * MM Source Type: 1300 nm Fabry-Perot Laser * Ideal 1300 MM TRACETEKMM Module (Ideal tracetek mm module for lantek 6 & 7 certifier is the responsibility of Avis Norton) |
avisnorton@cedar--rapids.com (Avis Norton) for more information.
