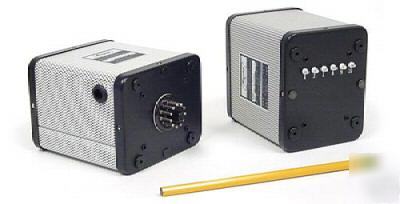

Specifications DUAL OUTPUT POWER SUPPLY ACOPIAN R5J50D-5J200D REGULATION: LOAD +/- : 0.3% LINE +/- : .05% REGULATION: LOAD +/- : 0.5% LINE +/- : .05% THIS UNIT IS AS SHOWN IN PHOTO. NO MANUAL. USED Input Voltage: 105-125 VAC, 50-400 Hz, single phase. Polarity: Outputs are floating. Each section may be independently connected to provide any combination of positive and negative outputs. Short Circuit Protection: Delivers current surges without damage - to protect against prolonged overloads and shorts, use of an input fuse is recommended. Temperature Coefficient: 0.02%/ deg. C (Typical). Ambient Operating Temperature: -10 to +65 deg. C. No derating required. Storage Temperature: -55 to +85 deg. C. Size and Case | Dimensions (inches) | weight WDJ 3.4 x 5.0 x 5.5 4 lb. 12 oz. Installation: Plugs into standard 11-pin octal-type socket (see accessory Socket). Four mounting holes (6-32) are provided in the base for fastening the module when used in other than the upright position, or if extreme vibration will be encountered. (Acopian R5J50D-5J200D dual output, 5V@0.5A + 5V@2.0A is the responsibility of Queen Gonzalez) |
