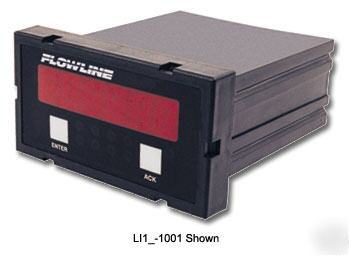

Purchasing multiple quantities? Ask us about price breaks! DataViewâ„¢ Universal Panel Meter Li13-1001 The general purpose meter reads engineering units with one level transmitter input channel and is offered in six configurations with optional 2 or 4 relays, 4 or 8 set points and an isolated 4-20 mA repeater. Each relay can be configured on a single set point or two latched set points for automatic fill or empty control. 4.5 digit LED display indicates level in custom engineering units 11-point linearization function for volumetric tank measurement Fail-safe design with security lock out jumper for process safety 1/8 DIN polycarbonate enclosure with NEMA 4X faceplate For three-wire transmitters, package the meter with our external power supply rated 24 VDC @ 0.6A. The rail mounted power supply can support up to three LU30 level transmitters. (Flowline dataview universal panel meter LI13-1001 is the responsibility of Evelyn Rasmussen) |
e.rasmussen@cedar--rapids.com (Evelyn Rasmussen) for more information.
